光學系統

CFI60無限遠光學系統

觀察方式

明場

PH相差

APC相襯

浮雕對比

明場

PH相差

APC相襯

浮雕對比

落射熒光

LED照明

透射照明

白色LED照明燈

落射照明

NA

可配置多達3個不同的熒光LED激發塊

可用波長：385,455,470,505,525,590,625nm

觀察筒

鏡筒傾角45°，瞳距：50-75mm，鉸鏈式

可連接相機端口，目鏡/端口：100/0：0/100

目鏡選項(F.O.V.)

10x (22)

12.5x (16)

15x (14.5)

手動調焦

物鏡轉換器向上/向下運動行程：上7mm，下1.5mm

粗調焦每轉37.7mm，精調焦每轉0.2mm

粗運動力矩可調

物鏡轉盤

五孔物鏡轉換器

聚光鏡

ELWD聚光鏡（NA0.3，W.D.75mm）

滑塊

預對中或對中相差滑塊, 可用于10x, 20x, 40x相差物鏡

浮雕相稱滑塊可用于10x, 20x, 40x 浮雕相稱物鏡

載物臺

普通載物臺，載物臺大小：170 (X) x 247 (Y) mm，隨著玻璃類型載物環

機械載物臺（可選），行程：126 (X) x78 (Y) mm

各種夾片器

適用于5種載物臺夾具：

C-S-HP35 Petridish   Holder 35mm（35 mm培養皿夾）

C-S-HLP100 Petridish   Holder 100mm（100 mm培養皿）

C-S-HT Terasaki   Holder for Terasaki holder and ?65 dish

C-S-HS Slide Glass   Holder for glass slides, ?54 dish and hemocytometer

C-S-HU Universal   Holder for Terasaki板, 玻片, ?35-65 dish and hemocytometer

熒光附件

NA

熒光濾光片轉盤（內置于顯微鏡主機后部）

NA

低噪音濾光片立方體

NA

3 個熒光濾光片立方體、1個明場觀察法的位置

NA

遮光罩（可選）

外形尺寸(W×D×H)

236×548×471 mm

主機重量

13kg

14.5kg

載物臺擴展板

Nikon

MFC10010

Each

TS2-S-SA Auxiliary Stage

Mounts to left and right side of plain stage

to increase overall width to 300mm

詢價

手動機械載物臺

Nikon

MFC35004

Each

TS2-S-SM Mechanical Stage (with handle)

Accepts 5 Types of Micro-TestPlates,

Well Clamper and Stage Clip

詢價

96孔板固定夾

Nikon

MXA22142

Each

C-S-WC 96 Well Plate Clamp

(Well Plate Installs in Mechanical Stage Without Holder)

詢價

臺面樣品夾

Nikon

MXA22143

Each

TC-S-SC Stage Clip (For All Holders)

詢價

萬能樣品支架

Nikon

MEC55016

Each

C-S-HU Universal Holder

(Rectangular Insert 86mm x 128mm)

詢價

35mm培養皿支架

Nikon

MEC55017

Each

C-S-HP35 Petri Dish Holder 35mm

(Rectangular Insert 86mm x 128mm)

詢價

100mm培養皿支架

Nikon

MEC55021

Each

C-S-HLP100 Petri Dish Holder 100mm

(Rectangular Insert 86mm x 128mm)

詢價

54mm培養皿支架

Nikon

MEC55014

Each

C-S-HS Slide Glass, Hemocytometer and 54mm dish holder

(Rectangular Insert 86mm x 128mm)

詢價

Terasaki板支架

Nikon

MEC55012

Each

C-S-HT Terasaki Plate Holder

(Rectangular Insert 86mm x 128mm)

詢價

圓孔板支架

Nikon

MEC55020

Each

C-S-HLS Ring Holder Set

(w/25mm Opening Cutout for Oil Immersion, 1pc w/40mm)

(Rectangular Insert 86mm x 128mm)

詢價

亞克力支架

Nikon

MEC55019

Each

C-S-HA Acrylic Holder

(Rectangular Insert 86mm x 128mm)

詢價

聚光鏡浮雕相襯元件

Nikon

MFH30010

Each

TS2-C-S-EC Emboss Contrast Slider

(Mounts in Condenser Slider Slot)

詢價

物鏡浮雕相襯元件

Nikon

MFH30020

Each

TS2-C-ST-EC Emboss Contrast Slider

(Mounts in main body intermediateimage slot)

詢價

預對中相襯滑塊

Nikon

MFV30010

Each

T1-SNCP Non-Centerable Phase Slider

Phase Ring PhL (4x), Ph1 (10x, 20x,40xF)

詢價

可調中相襯滑塊

Nikon

MFV30011

Each

T1-SCP Centerable Phase Slider

Phase Ring PhL (4x) and Ph1 (ADL 10x, 20x, 40xF)

詢價

PH2環形光闌

Nikon

MFV30013

Each

T1-SPH2 Phase Ring Ph2

Used  with:

MRP45422 CFI LWD ADL 40xC;

MRH48600 CFI S Plan Fluor ELWD ADL 60xC Objectivees

詢價

ELWD聚光鏡遮光板

Nikon

MFV51000

Each

TS2-LS Light Shield for ELWD Condenser

(Blocks Ambient Light for Increased Signal-to-Noise)

詢價

385nm LED激發光源

Nikon

MBF84715

Each

C-LEDLH 385nm LED Unit

詢價

455nm LED激發光源

Nikon

MBF84725

Each

C-LEDLH 455nm LED Unit

詢價

470nm LED激發光源

Nikon

MBF84735

Each

C-LEDLH 470nm LED Unit

詢價

505nm LED激發光源

Nikon

MBF84745

Each

C-LEDLH 505nm LED Unit

詢價

525nm LED激發光源

Nikon

MBF84755

Each

C-LEDLH 525nm LED Unit

詢價

560nm LED激發光源

Nikon

MBF84785

Each

C-LEDLH 560nm LED Unit

詢價

590nm LED激發光源

Nikon

MBF84765

Each

C-LEDLH 590nm LED Unit

詢價

625nm LED激發光源

Nikon

MBF84775

Each

C-LEDLH 625nm LED Unit

詢價

DAPI濾光組件

Nikon

96120

Each

DAPI/UV Long Pass Filter Set

Ex 375/28nm, Em 435nm Long Pass, DM 415nm

詢價

EGFP濾光組件

Nikon

96126

Each

EGFP/FITC/Cy2/Alexa Fluor 488 Filter Set

Ex 480/30nm Em 535/20nm, DM 505nm

詢價

GFP濾光組件

Nikon

96125

Each

GFP/FITC Long Pass Filter Set

Ex 480/30nm, Em 515nm Long Pass, DM 505nm

詢價

EYFP濾光組件

Nikon

96127

Each

EYFP/Venus/Citrine Filter Set

Ex 495/20nm, Em 540/30nm, DM 515nm

詢價

TRITC濾光組件

Nikon

96129

Each

TRITC/Cy3/TagRFP/Alexa Fluor 546 Filter Set

Ex 540/25nm, Em 605/55nm, DM 565nm

詢價

Texas Red濾光組件

Nikon

96131

Each

Texas Red/mCherry/Alexa Fluor 594 Filter Set

Ex 560/40nm (540-580nm), Em 635/60nm, DM 600nm

詢價

CY5濾光組件

Nikon

96132

Each

CY5/Alexa Fluor 647/Draq 5 Filter Set

Ex 620/50nm, Em 690/50nm, DM 655nm

詢價

10x目鏡

Nikon

MMK30102

Each

C-10x Widefield Eyepiece, FOV. 22mm

詢價

15x目鏡

Nikon

MMK30155

Each

C-15x Widefield Eyepiece, FOV. 16mm, 30mm Diameter

with Diopter Adjuster and Rubber Eye-Shields

Accepts 19mm Reticle Lead

詢價

目鏡遮光罩

Nikon

MXA25008

Each

Rubber Eyepiece Shield, for 10x, 15x, & 20x Eyepieces

詢價

相襯調中望遠鏡

Nikon

MAK85005

Each

C-CT Centering Telescope-NC.

Fits all Eclipse Microscope Eyepiece Tubes

Required for Phase Contrast or NAMC Alignment.

詢價

4x平場半復消色差相差物鏡

Nikon

MRH20041

Each

CFI60 Plan Fluor Phase Contrast DL 4x Objective

NA 0.13, WD. 17.1mm, FOV. 25mm, PhL

詢價

10x消色差APC相襯物鏡

Nikon

MRP40102

Each

CFI60 Achromat ADL 10x Objective, FOV 22mm

NA 0.25, WD 6.2mm, Ph1

詢價

20x消色差APC相襯物鏡

Nikon

MRP46202

Each

CFI60 Achromat ADL LWD 20x Objective, FOV 22mm

NA 0.4, WD 3.1mm, Ph1, Fixed Correction 1.2mm

詢價

40x消色差APC相襯物鏡

Nikon

MRP45422

Each

CFI60 Achromat ADL LWD 40x Objective, FOV 22mm

NA 0.55, WD 1.7-2.7mm, Ph2, Correction Collar 0-2mm

詢價

40x消色差APC相襯物鏡

Nikon

MRP46402

Each

CFI60 Achromat ADL LWD 40x Objective, FOV 22mm

NA 0.55, WD 2.1mm, Ph1, Fixed Correction 1.2mm

詢價

攝影光路輸出口

Nikon

MFB36100

Each

TS2-P-CF Camera Port

100% Eye: 100% Camera for Digital Cameras

詢價

1.0x C型相機接口

Nikon

MQD42005

Each

C-DA 1.0x C-Mount/Iso Camera Adapter

詢價

0.55xC型相機接口

Nikon

MQD42055

Each

Standard 0.55x C-Mount Camera Adapter

詢價

0.63x C型相機接口

Nikon

MQD43030

Each

C-0.63X-TS2 C-mount Adapter

詢價

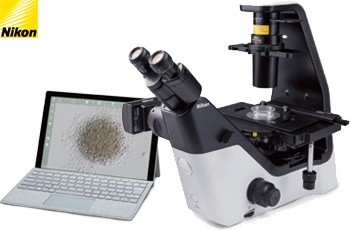

DS-Fi3成像PC控制套裝

Nikon

Each

DS-Fi3 Camera with PC and NIS-Elements L software.

includes：

camera, USB-C cable, AC adapter, and tablet computer

詢價

DS-Fi3成像獨立單元

Nikon

MQA180AA

Each

DS-Fi3 + L4 set

詢價

DS-Fi3數碼相機

Nikon

MQA18000

Each

DS-Fi3 Microscope Camera

詢價

Sight 1000 PC控制套裝

Nikon

Each

Digital Sight 1000 Camera and NIS-Elements L software.

includes：

camera, USB cable, AC adapter, tablet computer, and dock.

詢價

1-1

細胞APC相襯觀察套裝

E-TS2-W

Eclipse TS2 Routine Application Package

Configration including:

Eclipse Ts2 Inverted Microscope Main Body

MFC35004    TS2-S-SM Mechanical Stage (with handle)

MXA22142    C-S-WC 96 Well Plate Clamp

MEC55016    C-S-HU Universal Holder

MFV30010    T1-SNCP pre-centerable Phase Slider(PhL;Ph1)

MMK30102    C-10x Widefield Eyepiece, FOV 22mm

MRH20041    Plan  DL 4x Objective,   NA0.13/WD17.1mm, FOV25mm, PhL

MRP40102    Achromat ADL 10x Objective, NA0.25/WD 6.2mm, Ph1

MRP46202    Achromat ADL LWD 20x Objective, NA0.4/WD3.1mm, Ph1, 1.2mm

MRP46402    Achromat ADL LWD 40x Objective, NA0.55/WD2.1mm,Ph1, 1.2mm

詢價

1-2

細胞APC相襯成像套裝

E-TS2-I

Eclipse TS2 Routine Cell Imaging   Application Package

Configration including:

Eclipse Ts2 Inverted Microscope Main Body

MFC35004    TS2-S-SM Mechanical Stage (with handle)

MXA22142    C-S-WC 96 Well Plate Clamp

MEC55016    C-S-HU Universal Holder

MFV30010    T1-SNCP pre-centerable Phase Slider(PhL,Ph1)

MMK30102    C-10x Widefield Eyepiece, FOV 22mm

MRH20041    Plan  DL 4x Objective,   NA0.13/WD17.1mm, PhL

MRP40102    Achromat ADL 10x Objective, NA0.25/WD 6.2mm, Ph1

MRP46202 Achromat ADL LWD 20x Objective, NA0.4/WD3.1mm, Ph1, 1.2mm

MRP46402 Achromat ADL LWD 40x Objective, NA0.55/WD2.1mm, Ph1, 1.2mm

MFB36100    TS2-P-CF Camera Port

MQD42055    Standard 0.55x C-Mount Camera Adapter

DS-Fi3 Microscope Camera with Tablet Computer and NIS-Elements L software

詢價

2-1

細胞熒光浮雕相襯應用套裝

E-TS2-FL-EMC

Eclipse TS2-FL Cell Imaging Application   Package

Configration including:

TS2-FL Inverted Microscope Main Body

MFC35004    TS2-S-SM Mechanical Stage (with handle)

MXA22142    C-S-WC 96 Well Plate Clamp

MEC55016    C-S-HU Universal Holder

MFH30010    TS2-C-S-EC Emboss Contrast Slider

MFH30020    TS2-C-ST-EC Emboss Contrast Slider

MMK30102    C-10x Widefield Eyepiece, FOV. 22mm

MRH00041    CFI60 Plan Fluor 4x Objective, NA 0.13/WD 17.2mm

MRH00101    CFI60 Plan Fluor 10x Objective, NA 0.3/WD 16mm

MRH00201    CFI60 Plan Fluor 20x Objective, NA 0.5/WD 2.1mm

MRH00401    CFI60 Plan Fluor 40x Objective, NA 0.75/WD 0.66mm

MBF84715    C-LEDLH 385nm LED Unit

MBF84735    C-LEDLH 470nm LED Unit

MBF84785    C-LEDLH 560nm LED Unit

MFV51000    TS2-LS Light Shield for ELWD Condenser

DAPI/UV Long Pass Filter Set, Ex(361-389nm), Em 435nm Long Pass

EGFP/FITC/Cy2/Alexa Fluor 488 Filter Set, Ex(465-495nm), Em(525-545nm)

Texas Red/mCherry/Alexa Fluor 594 Filter Set, Ex(540-580nm), Em(605-665)

MFB36100    TS2-P-CF Camera Port

MQD42055    Standard 0.55x C-Mount Camera Adapter

DS-Fi3 Microscope Camera with Tablet Computer and NIS-Elements L software

詢價
