細胞倒置顯微鏡

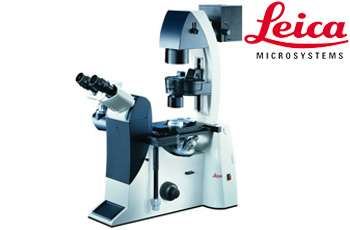

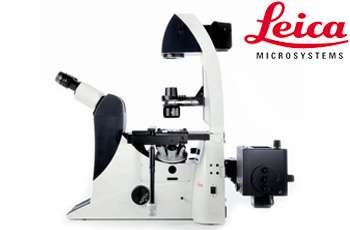

Leica DMI3000 B研究級倒置熒光顯微鏡
徠卡Leica DMI3000 B研究級倒置熒光顯微鏡的價格、基本配置、功能用途、技術資料、訂貨指南等信息
設備名稱:倒置顯微鏡、倒置熒光顯微顯微鏡
制 造 商:德國徠卡公司
品 牌:Leica/徠卡
型 號:Leica DMI3000 B
產 地:德國
主要功能用途
Leica DMI3000 B倒置熒光顯微鏡由普通倒置顯微鏡的基礎上整合包括熒光激光源,熒光濾塊及熒光物鏡等全套熒光附件構成,除了具備常規倒置顯微鏡的明場(Bright field/BF)、相襯模塊(Phase contrast/PH)、暗場(Dark field incident/DF) 、偏光觀察(Polarization, incident/POL)功能、微分干涉 (Differential Interference Contrast/DIC)和浮雕相襯模塊(HMC)外,通過紫外、紫色、藍色、綠色、紅色等多種熒光激發光學模塊,可觀察DAPI、FITC、GFP等常用熒光標記樣品。既能滿足組織細胞等未經染色、透明生物醫學標本\普通病理切片、免疫組化切片的觀察,還用于細胞生物學、神經生物學、發育生物學、分子生物學、光生物學實驗中組織細胞的熒光觀察。
性能特點
Leica DMI3000 B倒置熒光顯微鏡采用人體工學設計,徠卡目鏡之間鏡筒設置有“目視通道,能隨時從顯微觀察切換為目視觀察,方便一邊觀察到標本一邊進行顯微操作。與傳統相差和霍夫曼浮雕相襯觀察光路設計不同之處在于,采用創新的外置相襯模塊(Integrated phase contrast/IPH)及浮雕相襯模塊(Integrated modulation contrast/IMC)設計,只需普通明場/熒光物鏡即可實現明暗場/相差/浮雕相襯/DIC/偏光所有透射光觀察。
透射光應用
Leica DMI3000 B倒置熒光顯微鏡支持所有透射光觀察方式,包括熒光成像、活細胞成像與延時成像、高速多路熒光斷層顯微成像、顯微操作等。
聚光鏡具有1、23、28、40 和 70 mm五種工作距離
S28聚光鏡(工作距離28mm)以為顯微操作提供了足夠的工作距離;聚光鏡和照明臂之間的插頭,使聚光鏡的更換更容易。Koehler鎖定桿能輕松復原最佳的Koehler設置,還能防止操作針頭遭到損壞。
外置相襯 (IPH)
在外置光闌位置加入相差環,使用明場物鏡實現相襯觀察,不需要用帶相襯圈的特殊物鏡。
外置浮雕相襯觀察技術 (IMC)
Leica DMI3000 B倒置熒光顯微鏡的IMC浮雕相襯模塊集成在顯微鏡內,位于物鏡外,光路焦平面位置上 (光闌界面)。所有透射光觀察技術共用一套物鏡,只需選擇明場即可簡便實現浮雕相襯 (霍夫曼) 觀察方法效果;當物鏡或放大倍率發生變化時,圖像的3D浮雕感保持不變,不需要另行調節;
也可用于明場,暗場和熒光觀察,同時提高熒光通量得到更明亮的圖像;IMC 浮雕相襯觀察法支塑料培養皿觀察。
微分干涉 (DIC)
微分干涉可使標本的細微結構呈現出一側亮、另一側暗的三維立體感,樣品各組成份相對層次關系突出,將明視場觀察法中無法檢測到的高度差異,用增強的對比度以浮雕或三維圖像的形式表現出來。與相差顯微鏡相比,使細胞的結構中一些較大的細胞器,如核、線粒體等,立體感特別強,特別適合于基因注入、核移植、轉基因等的顯微操作;
Leica DMI3000 B顯微鏡 DIC 棱鏡組合,可用于觀察“正常”厚度、極厚及極薄的標本。
活細胞研究熒光觀察
Leica DMI3000 B 可以用于所有熒光觀察技術,單標或多色標記熒光、GFP 應用或及免疫熒光;
熒光照明強度管理系統 (FIM) 可調節熒光激發光強,避免樣本熒光漂白;
熒光濾塊具有光阱,有效減少背景光,提高圖像質量;
詢價像素移位熒光濾塊技術確保多種熒光蛋白質的圖像定位,不必進行軟件修正。
可匹配顯微操作系統
Leica DMI3000 B可與機械式顯微操作系統無縫配合。還可以與電動式和液壓式顯微操作配合使用。
主要技術規格
Leica DMI3000 B倒置熒光顯微鏡硬件核心部件主要技術要素如下。
Leica DM13000 B透射光 | Leica DMI3000B透射光和熒光 | |
基礎透射光臂 | 標準型12V/100W透射光照明臂組件,含手動視場光闌(Field diaphragm/FD),可容納2個色溫調節濾片的手動濾塊匣,手動光閘 | |
經濟型12V/30W透射光照明臂組件,含內置12V/30W鹵素燈燈箱,容納2個濾塊的機械式濾塊匣,手動光閘 | ||
光學載體 | 可選外置浮雕相襯觀察(IMC) 可選外置相襯 (IPH) | |
物鏡轉換器 | 機械式6位物鏡轉換器M25 | |
機械式載物臺 | 多種尺寸固定載物臺 | |
樣本導軌:可匹配20多種不同樣本夾/加熱和冷卻樣本夾 | ||
3板載物臺、窄式顯微操作 3 疊式載物臺 | ||
聚光鏡 | 手動聚光鏡盤,可用于棱鏡、DF定子、PH環、IMC聚光鏡件等光學元件; 內置式手動孔徑光闌; 獨立手動起偏鏡(可選裝) | |
Si油/1.4:手動擺動式聚光鏡頂鏡、固定式聚光鏡頂鏡 | ||
Si干/0.9:手動擺動式聚光鏡頂鏡 | ||
S23/0.52:固定式聚光鏡頂鏡 | ||
S28/0.55:手動擺動式聚光鏡頂鏡、固定式聚光鏡頂鏡 | ||
S40/0.50:固定式聚光鏡頂鏡 | ||
S70/023:固定式聚光鏡頂鏡 | ||
熒光觀察 | 5 位手動熒光濾塊轉換器,拆卸抽屜式 可調整孔徑光闌和視場光闌 熒光照明強度管理系統(FIM)可調節熒光激發光強,避免樣本熒光漂白 內置熒光光閘能迅速阻斷熒光照明 1"集光鏡 |
安裝運行條件
Leica DMI3000 B倒置熒光顯微鏡只能在室內使用
工作環境溫度:15℃ ~ 35℃;
工作電源:AC 100-240V AC, 50/60Hz,290W,6.3A
相對濕度范圍:max 80% at 30℃
外觀尺寸尺寸(長×寬×高):535×248×543 mm
組成配置
Leica DMI3000 B倒置熒光顯微鏡系統包括主機、載物臺及附件、目鏡、物鏡、光學照明組件、聚光鏡、特殊光學插件(相差/浮雕相襯/DIC/熒光)和數碼影像組件(數碼攝像頭/C型安裝適配器/聯機采集卡/數據線)和徠卡LAS軟件應用包等組成。
主機
Leica DMI3000 B倒置熒光顯微鏡隨應用要求不同,主機基座部分預裝有不同的光學附件。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
DMI3000 B倒置熒光顯微鏡主機 | Leica | 11888374 | 1臺 | DMI3000B Base stand,Fluorescence, manual 80%-20% Sideport DMI3000 B倒置熒光顯微鏡主機, 帶80%/20%分光比例攝影側面端口 | 詢價 |
DMI3000 B倒置熒光顯微鏡 | Leica | 11888921 | 1臺 | DMI3000B Base stand,Fluorescence, manual 100%-0% Sideport DMI3000 B倒置熒光顯微鏡, 帶100%/0%分光比例攝影側面端口 | 詢價 |
DMI3000 B倒置顯微鏡主機 | Leica | 11888903 | 1臺 | DMI3000B Base stand,transmitted light(TL), manual 80%/20% Side-port DMI3000B倒置顯微鏡主機, 帶80%/20%分光比例攝影側面端口 | 詢價 |
DMI3000 B倒置顯微鏡主機 | Leica | 11888922 | 1臺 | DMI3000B Base stand,transmitted light(TL), manual 100%/0% Side-port DMI3000B倒置顯微鏡主機, 帶100%/0%分光比例攝影側面端口 | 詢價 |
主要附件
1)載物臺及附件
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
常規固定載物臺 | Leica | 11522078 | 1個 | Fixed Stage Plate without Temperature Control 外形尺寸(L×W):(248×204 mm) 標配含:10mm開口的88mm圓環插件 可選附件:樣品導軌(11522014) | 詢價 |
顯微操作固定載物臺 | Leica | 11522015 | 1個 | Slim Fixed Stage Plate窄式固定載物臺,可進行顯微操作。 外形尺寸(L×W):248 mm×112 mm 標配含10mm開口的88mm圓環插件 可選附件:窄式固定載物臺用樣品導軌(11522018); | 詢價 |
手動3板載物臺 | Leica | 11522076 | 1個 | 3-Plate Stage, manual, BIO適用于DMI系列手動倒置顯微鏡。 外形尺寸(L×W):365×335 mm 定位移動范圍:127 mm×83 mm 配套硬件:手動3板載物臺標配不含任何插件, 可選配160×110 mm矩形樣品托架 | 詢價 |
手動顯微操作 3板載物臺 | Leica | 11522077 | 1個 | Slim Manual 3-plate-stage用于DMI系列倒置顯微鏡進行顯微操作; 外形尺寸(L×W):235×325mm 定位移動范圍:40×40 mm 標配含:10mm開口的88mm圓環插件 | 詢價 |
(查看更多載物臺附件)
2)光學照明組件
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
高壓Hg 100W燈電源 | Leica | 11500325 | 1個 | Power Supply unit, ebq 100 , for 100W high-pressure mercury burner Hg 100W高壓氣體放電燈的獨立外置電源ebq 100 | 詢價 |
Hg 100W熒光燈箱106Z L | Leica | 11504106 | 1個 | Lamp house 106Z left, 6 Lenses, Hg 100W, 1-inch collector Hg 100W熒光燈箱106Z L, 帶6個1英寸集光鏡 | 詢價 |
直角右轉燈箱接口 | Leica | 11504135 | 1個 | Lamp mount adapter with fixed 90° mirror, right 可接1個燈箱的接口,向右轉向90° | 詢價 |
EL6000外置熒光光源 | Leica | 11504115 | 1個 | External light source EL 6000 EL6000外置熒光光源 | 詢價 |
EL6000外置熒光2m光纖 | Leica | 11504116 | 1個 | Liquid Light Guide for EL6000, Gel fiber-optics, 2m 2m光纖,用于延伸輸出EL6000產生的光信號 | 詢價 |
1英寸光纖接口 | Leica | 11504117 | 1個 | Light guide coupler, 1-inch fiber-optics adapter 1英寸光纖接口,一端連接2m光纖(11504116),另一端與顯微鏡 燈箱接口11504135或11504111相連 | 詢價 |
1英寸光纖直接接口 | Leica | 11504136 | 1個 | 1-inch fiber-optics adapter, direct, EL6000 for DMI Stand 1英寸光纖直接接口,一端連接2m光纖(11504116), 另一端可直接導入顯微鏡入射光接口 | 詢價 |
紫外激發濾塊A4 | Leica | 11513874 | 1個 | Filter Cube A4, UV Fluorcube; size k excitation ?lter 340-380 nm UV light; Excitation Filter: BP360/40nm; Dichromatic Mirror: 400nm; Suppression Filter: BP470/40nm | 詢價 |
藍色激發濾塊I3 | Leica | 11513878 | 1個 | Filter System I3; size k K-Cube Filter System I3 For Blue Excitation; Excitation Filter: BP 450 - 490, Dichromatic Mirror: 510nm, Suppression Filter: LP515nm. | 詢價 |
綠色激發濾塊N2.1 | Leica | 11513882 | 1個 | Filter System N2.1; size k Filter System N2.1 For Green Excitation. Filter Cube Excitation Range: green; Excitation Filter: BP 515-560nm, Dichromati c Mirror: 580nm, Suppression Filter: LP 590nm | 詢價 |
紫外/紫色激發濾塊D | Leica | 11513875 | 1個 | Filter System D; size k K-Cube Filter System D For UV+Violet Excitation; Excitation Filter: BP 355-425nm; Dichromatic Mirror: 455nm; Suppression Filter: LP470nm | 詢價 |
(查看更多光源選項)
3)聚光鏡
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
S1-S28旋轉頭手動聚光鏡通用底座 | Leica | 11522005 | 1個 | Manual condenser base S1–S28 with pivoting head; 頂鏡可旋出型通用底座(不含頂鏡), 適用于S1、S23、S28系列手動聚光鏡 | 詢價,970 |
S28聚光鏡頂鏡 | Leica | 11505234 | 1個 | Condenser head S28/0.55,工作距離28mm | 詢價 |
S1-S28聚光鏡通用起偏器 | Leica | 11522103 | 1個 | Manual Polarizer in Holder | 詢價 |
S23-28聚光鏡相差環套件 | Leica | 11521505 | 1個 | Light ring set for PH and DF contrast, for condenser S23/S28 | 詢價 |
S23-28聚光鏡IMC調制器套件 | Leica | 11522074 | 1個 | IMC Modulator-Set for S23-28 Condenser | 詢價 |
(查看更多聚光鏡選項)
4)相差/浮雕相襯/DIC/熒光光學插件
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
IMC &IPH通用前部模塊 | Leica | 11888384 | 1個 | Front Module for IMC &IPH Slider/Insert 容納和安裝IMC &IPH滑板的模塊,適用于DMI 3000B配套 | 詢價 |
MC &IPH前部模塊及1.6x 光學放大變倍器 | Leica | 11888386 | 1個 | a front module in conjunction with a 1.6x manual magnification changer | 詢價 |
5x-10x/B型相差環 | Leica | 11522080 | 1個 | Phase insert 5x-10x/B, height adjustable 適用于5x-10x放大倍數范圍的B型物鏡的相差環 | 詢價 |
20x-63x/C型相差環 | Leica | 11522064 | 1個 | Phase ring insert 20x-63x Pupil C 適用于5x-10x放大倍數范圍的B型物鏡的相差環 | 詢價 |
5x-10x/A型相差環 | Leica | 11522054 | 1個 | Phase ring insert 5x-10x, Pupil A 適用于5x-10x放大倍數范圍的B型物鏡的相差環 | 詢價 |
20x-63x/C型相差環 | Leica | 11522053 | 1個 | Phase ring insert 20x-63x, Pupil C 適用于20x-63x放大倍數范圍的B型物鏡的相差環 | 詢價 |
空相差環滑板 | Leica | 11522065 | 1個 | Front Module Slider, empty, adjustable DMI 3000B配套空相差滑塊, 可安裝具有1個明場位和2個相差環安裝位置。 | 詢價 |
S23-28聚光鏡IMC模塊 | Leica | 11522074 | 1個 | IMC Modulator-Set for S23-28 Condenser | 詢價 |
聚光鏡IMC滑塊 | Leica | 11522050 | 1個 | Set of IMC condenser inserts | 詢價 |
B/C型物鏡IMC滑塊 | Leica | 11522075 | 1個 | IMC slider for objectives with pupil B or C 后焦面為B或者C型物鏡配套IMC滑塊,安裝于前段模塊中 | 詢價 |
A/C型物鏡IMC滑塊 | Leica | 11522052 | 1個 | IMC Slider for soft contrast. Pupil A/C | 詢價 |
手動起偏器 | Leica | 11522067 | 1個 | Polarizer in holder manual | 詢價 |
DIC物鏡棱鏡手動轉盤 | Leica | 11522048 | 1個 | Coded 4-Positon DIC Objective-prism turret for DMI | 詢價 |
物鏡DIC棱鏡 A | Leica | 12555006 | 1個 | IC-Prism A for objective | 詢價 |
物鏡DIC棱鏡 B1 | Leica | 11555007 | 1個 | IC-Prism B1 for objective | 詢價 |
物鏡DIC棱鏡 B2 | Leica | 11555008 | 1個 | IC-Prism B2 for objective | 詢價 |
物鏡DIC棱鏡 C | Leica | 11555009 | 1個 | IC-Prism C for objective | 詢價 |
物鏡DIC棱鏡 C1 | Leica | 11522038 | 1個 | IC-Prism C1 for objectives | 詢價 |
物鏡DIC棱鏡 C2 | Leica | 11522039 | 1個 | IC-Prism C2 for objectives | 詢價 |
物鏡DIC棱鏡 D | Leica | 11555010 | 1個 | IC-Prism D for objective | 詢價 |
物鏡DIC棱鏡 D1 | Leica | 11555056 | 1個 | IC-Prism D1 for objective | 詢價 |
物鏡DIC棱鏡 E | Leica | 11555046 | 1個 | IC-Prism E for objective | 詢價 |
聚光鏡DIC棱鏡 K17 | Leica | 11555091 | 1個 | ICT condenser prism K17 | 詢價 |
聚光鏡DIC棱鏡 K1B | Leica | 11555070 | 1個 | ICT condenser prism K 1B | 詢價 |
聚光鏡DIC棱鏡 K10 | Leica | 11521524 | 1個 | ICT condenser prism K10 | 詢價 |
聚光鏡DIC棱鏡 K6 | Leica | 11521521 | 1個 | ICT condenser prism K6 | 詢價 |
聚光鏡DIC棱鏡 K7 | Leica | 11521522 | 1個 | ICT condenser prism K7 | 詢價 |
聚光鏡DIC棱鏡 K8 | Leica | 11521523 | 1個 | ICT condenser prism K8 | 詢價 |
聚光鏡DIC棱鏡 K16 | Leica | 11522037 | 1個 | ICT-Condenser prism K16 | 詢價 |
(查看更多光學插件選項)
5)目鏡筒和目鏡
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
角度可調雙目鏡筒 | Leica | 11888372 | 1個 | binocular ergonomical tube without Bertrand lens | 詢價 |
角度可調50%-50% 分光三目鏡筒 | Leica | 11888368 | 1個 | Trinocular ErgoTube , with 50/50% light division, without Bertrand lens | 詢價 |
角度可調100%-0% 分光三目鏡筒 | Leica | 11888370 | 1個 | Trinocular ErgoTube , with 100%/0% light division, without Bertrand lens | 詢價 |
10X/20 非對焦目鏡 | Leica | 13613530 | 1個 | 10x/20 Non-focusing Eyepieces for DMiL; 10X/20 eyepiece w/eyeguard | 詢價 |
10X/20對焦目鏡 | Leica | 13613532 | 1個 | 10x/20 Focusing Eyepieces for DMiL, 10X/20 focusing eyepiece w/eyeguard | 詢價 |
(查看更多目鏡選項)
6)物鏡
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
5x平場消色差物鏡 | Leica | 11506302 | 1個 | N PLAN 5x/0.12; WD 14.0mm Objective, More Highly Corrected For Abberation. 5X Magnification With 0.12 Numerical Aperture And A Working Distance of 14mm. | 詢價 |
5x平場消色差相差物鏡 | Leica | 11506090 | 1個 | objective N PLAN 5x/0.12 PH0; WD 14.0mm | 詢價 |
10x平場消色差相差物鏡 | Leica | 12506088 | 1個 | N PLAN 10X/0.25 PH1 -/A 5 Leica N Plan 10x/0.25na Ph1 Objective; 5.8mm Working Distance; Infinity Corrected | 詢價 |
20x長距離平場 消色差相差物鏡(校正環) | Leica | 11506058 | 1個 | N PLAN L 20X PH1 Phase Contrast Long Working Distance Objective For Inverted Dm Series Microscopes., 0-2CORR, 3.2-1.9mm Working Distance.C型棱鏡 | 詢價 |
20x長距離平場 消色差相差物鏡 | Leica | 11506248 | 1個 | N PLAN L 20x/0.35; For use with cover-glasses of 0-2mm, WD 6.9mm | 詢價 |
40x長距離平場 消色差相差物鏡(帶校正環) | Leica | 11506298 | 1個 | N PLAN L 40x/0.55 PH2 CORR, Cover-glass thickness:0-2mm;WD 3.3 - 1.9mm | 詢價 |
10x平場 消色差相差熒光物鏡 | Leica | 11506307 | 1個 | HCX FL PLAN 10x/0.25 PH1; WD 17.6mm | 詢價 |
20x平場 消色差相差熒光物鏡 | Leica | 11506309 | 1個 | HCX FL PLAN 20x/0.4 PH1; For use with cover-glasses of 0.17mm, WD 0.39mm | 詢價 |
40x平場 消色差相差熒光物鏡 | Leica | 11506311 | 1個 | HCX FL PLAN 40x/0.65 PH2, Cover-glass thickness:0.17mm, WD 0.36mm | 詢價 |
10x平場半復 消色差相差熒光物鏡 | Leica | 11506507 | EA | HC PL FL 10x/0.30 PH1,聚光鏡棱鏡 K3(K11)/D1(D)物鏡棱鏡, 工作距離 11.0mm | 詢價 |
20x平場半復 消色差熒光物鏡 | Leica | 11556068 | 1個 | HC PL FLUOTAR 20x/0.5; WD 1.27mm 可與S1-S70聚光鏡的 DIC棱鏡K3/K6/K11匹配 | 詢價 |
40x超長距平場半 復消色差熒光物鏡 | Leica | 11506205 | 1個 | HCX PL FLUOTAR L 40x/0.6, 0-2mm CORR, WD 3.3-1.9mm | 詢價 |
(查看更多物鏡選項)
7)數碼攝像頭
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
DFC450C 數碼攝像頭 | Leica | 12730412 | 1套 | Leica DFC450 C camera 500萬像素CCD分辨率, Peltier 冷卻系統 Leica DFC450 C Digital Camera & SW Kit標配含Leica DFC450 C camera, LAS Software, FireWire cable B-B, PCI-express FireWire-B board | 詢價 |
DFC7000 T攝像頭 | Leica | 11547106 | 1套 | Leica DFC7000T camera kit 2.8 MP pixels(1920 x 1440), 4.54 μm x 4.54 μm pixel size | 詢價 |
(查看更多數碼攝像頭選項)
8)徠卡LAS軟件
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
LAS X 軟件 基礎功能模塊 | Leica | 11640878 | 1套 | LAS X Core software, operates without the need for a dongle. | 詢價 |
LAS 分析 軟件包 | Leica | 12730219 | 1套 | LAS Analysis Bundle (Meas.,Annot.,Analys) | 詢價 |
LAS 高級分析 軟件包 | Leica | 12730448 | 1套 | LAS Advanced Analysis Bundle | 詢價 |
基本耗材
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
備用Hg-100W燈 | Leica | ?11500138 | 1個 | Hg gas discharge lamp 100W 100W high-pressure mercury burner (direct current) 熒光光源高壓汞燈,正常情況下工作壽命為:200 hrs. | 詢價 |
備用Xe-750W燈 | Leica | 11500139 | 1個 | Xe gas discharge lamp 75W 75W high-pressure xenon burner (direct current) 熒光光源高壓汞燈,正常情況下工作壽命為:400 hrs. | 詢價 |
備用12V/100W鹵素燈 | Leica | 11500974 | 1個 | Halogen Lamp 12V/100W (Osram 64625) 歐司朗12V100W 顯微鏡鹵素燈泡 | 詢價 |
備用12V/30W鹵素燈 | Leica | 11500317 | 1個 | Halogen Lamp 12V/30W(OSRAM 64261) 歐司朗12V30W 顯微鏡鹵素燈泡 | 詢價 |
訂貨指南
Leica DMI3000 B倒置熒光顯微鏡根據其功能定位,常用配置套裝有倒置熒光成像系統、帶DIC觀察模塊的熒光成像系統。此外,為滿足顯微操作實驗要求,還可搭建帶浮雕相襯觀察功能(IMC)模塊。
序號 | 品名 | 貨號 | 套裝配置描述 | 報價 |
1 | 徠卡DMI3000B倒置熒光 相差顯微套裝套裝 | 888923PHF | Leica DMI3000B研究級倒置顯微鏡相差-熒光套裝主要配置包括: ■主體部分 DMI3000B Base stand/DMI3000 B主機基座,含: DMI3000B Base stand Fluo manual, 100% Sideport(11888923) 1 Optic carrier (IMC)+100W Power Supply(11888912) 1 ■ Transmitted-light axes 透射光軸 Manual TL-Column illumination carrier incl. 30W Lamphouse, shutter, filter magazine(11888366) 1 Lamp house 107 left, 12V/100W Halogen, 2,5m(11504101) 1 Halogen Lamp 12V/100W (Osram 64625)(11500974) 1 ■ S1-28 Condensers 手動式聚光鏡 Manual condenser base S1–S28 with pivoting head(11522005) 1 Condenser head S28/0.55(11505234) 1 Set of light rings for Condenser S23/S28(11521505) 1 ■ Tube 目鏡筒 Bino ErgoTubes without Bertrand lens(11888372) 1 ■ Eyepieces 目鏡 Eyepiece HC PLAN s 10x/22 Br. M(11507807) 2 ■ Fluorescence lamp housings 熒光燈箱 Power Supply unit, ebq 100 , for 100W high-pressure mercury burner(11500325) 1 Lamp housing 106z 6 Lenses Hg 100W 1-inch collector(11504114) 1 Lamp adapter 90 right(11504135) 1 Halogen Lamp 12V/100W (Osram 64625)(11500974) 1 ■ Fluorescence filter system 熒光濾塊系統 Filter System I3; size k(11513878) 1 Filter System N2.1 for Green Excitation; size k. (11513882) 1 Filter Cube A4, UV Fluorcube; size k(11513874) 1 ■ Objective 物鏡 N PLAN 5x/0.12 WD14.0mm; PH0 K3/K1; B1/B2(11506303) 1 HCX FL PLAN 10x/0.25 WD 17.6mm PH1; K3/K11, B1/B2(11506307) 1 HCX PL FLUOTAR L 20x/0.4 WD 6.9mm, Coverglass 0-2mm CORR; PH1; K6, C/C1/C1-P(11506243) 1 N PLAN L 40x/0.55 WD 3.3-1.9mm, Coverglass 0-2mm CORR; PH2; K6/K8/K16, C/C1/C1-P(11506298) 1 ■ Stages 載物臺和附件 Fixed Stage Plate without Temperature Control(11522078) 1 Object guide for special holder frame(11522014) 1 Holding frame for Microtitter-Plate,with a common footprint of 127×85 mm. (11520589) 1 Frame to fix different cultivation vessels.(11533081) 1 ■ Leica DFC cameras 數碼攝像頭 Leica DFC450 C Digital Camera & SW Kit(12730412) 1 0.70x HC C-mount adapter(11541543) 1 ■ windows PC worksattion(國內采購) 1 | 詢價 |
2 | 徠卡DMI3000B倒置顯微鏡 熒光-IPH功能套裝 | 888923IPH | Leica DMI3000B研究級倒置顯微鏡IPH-熒光套裝主要配置包括: ■主體部分 DMI3000B Base stand/DMI3000 B主機基座,含: DMI3000B Base stand Fluo manual, 100% Sideport(11888923) 1 Optic carrier (IMC)+100W Power Supply(11888912) 1 ■ Transmitted-light axes 透射光軸 Manual TL-Column illumination carrier incl. 30W Lamphouse, shutter, filter magazine(11888366) 1 Lamp house 107 left, 12V/100W Halogen, 2,5m(11504101) 1 Halogen Lamp 12V/100W (Osram 64625)(11500974) 1 ■ S1-28 Condensers 手動式聚光鏡 Manual condenser base S1–S28 with pivoting head(11522005) 1 Condenser head S28/0.55(11505234) 1 Set of light rings for Condenser S23/S28(11521505) 1 ■ IMC-/IPH-Systems Front module for IMC(11888384) 1 Phaco-slider, empty, adjustable inserts(11522065) 1 Phaco insert 5x-10x objectives w. Pupil B, height adjustable(11522080) 1 Phase ring insert,for 20x-63x objectives w. Pupil C(11522064) 1 ■ Tube 目鏡筒 Bino ErgoTubes without Bertrand lens(11888372) 1 ■ Eyepieces 目鏡 Eyepiece HC PLAN s 10x/22 Br. M(11507807) 2 ■ Fluorescence lamp housings 熒光燈箱 Power Supply unit, ebq 100 , for 100W high-pressure mercury burner(11500325) 1 Lamp housing 106z 6 Lenses Hg 100W 1-inch collector(11504114) 1 Lamp adapter 90 right(11504135) 1 Halogen Lamp 12V/100W (Osram 64625)(11500974) 1 ■ Fluorescence filter system 熒光濾塊系統 Filter System I3; size k(11513878) 1 Filter System N2.1 for Green Excitation; size k. (11513882) 1 Filter Cube A4, UV Fluorcube; size k(11513874) 1 ■ Objective 物鏡 HCX FL PLAN 5x/0.12 WD14.0mm; K3/K1; B1/B2(11506305) 1 HC PL FLUOTAR 10x/0.3 WD 11.0mm; K11/K3, D/D1/D1-P(11506505) 1 HCX PL FLUOTAR L 20x/0.4 WD 6.9mm, Coverglass 0-2mm CORR; K6, C/C1/C1-P(11506242) 1 HCX PL FLUOTAR L 40x/0.6, 0-2mm CORR, WD 3.3-1.9mm(11506205) 1 ■ Stages 載物臺和附件 Fixed Stage Plate without Temperature Control(11522078) 1 Object guide for special holder frame(11522014) 1 Holding frame for Microtitter-Plate, with a common footprint of 127×85 mm. (11520589) 1 Frame to fix different cultivation vessels.(11533081) 1 ■ Leica DFC cameras 數碼攝像頭 Leica DFC450 C Digital Camera & SW Kit(12730412) 1 0.70x HC C-mount adapter(11541543) 1 ■ windows PC worksattion(國內采購) 1 | 詢價 |
3 | 徠卡DMI3000B倒置顯微鏡 PH/DIC/熒光功能套裝 | 888923DIC | Leica DMI3000B研究級 倒置顯微鏡PH/DIC/熒光套裝主要配置包括: ■主體部分 DMI3000B Base stand/DMI3000 B主機基座,含: DMI3000B Base stand Fluo manual, 100% Sideport(11888923) 1 Optic carrier (IMC) + 100W Power Supply(11888912) 1 ■ Transmitted-light axes 透射光軸 Manual TL-Column illumination carrier incl. 30W Lamphouse, shutter, filter magazine(11888366) 1 Lamp house 107 left, 12V/100W Halogen, 2,5m(11504101) 1 Halogen Lamp 12V/100W (Osram 64625)(11500974) 1 ■ S1-28 Condensers 手動式聚光鏡 Manual condenser base S1–S28 with pivoting head(11522005) 1 Condenser head S28/0.55(11505234) 1 Set of light rings for Condenser S23/S28(11521505) 1 Polarizer in Holder for S1–28 Condenser, manual(11522103) 1 ■ IMC-/IPH-Systems Phaco-slider, empty, adjustable inserts(11522065) 1 Phaco insert 5x-10x objectives w. Pupil B, height adjustable(11522080) 1 Phase ring insert,for 20x-63x objectives w. Pupil C(11522064) 1 ■ Tube 目鏡筒 Bino ErgoTubes without Bertrand lens(11888372) 1 ■ Eyepieces 目鏡 Eyepiece HC PLAN s 10x/22 Br. M(11507807) 2 ■ Fluorescence lamp housings 熒光燈箱 Power Supply unit, ebq 100 , for 100W high-pressure mercury burner(11500325) 1 Lamp housing 106z 6 Lenses Hg 100W 1-inch collector(11504114) 1 Lamp adapter 90 right(11504135) 1 Halogen Lamp 12V/100W (Osram 64625)(11500974) 1 ■ Fluorescence filter system 熒光濾塊系統 Filter System I3; size k(11513878) 1 Filter System N2.1 for Green Excitation; size k. (11513882) 1 Filter Cube A4, UV Fluorcube; size k(11513874) 1 ■ Objective 物鏡 HCX FL PLAN 5x/0.12 WD14.0mm; K3/K1; B1/B2(11506305) 1 HC PL FLUOTAR 10x/0.3 WD 11.0mm; K11/K3, D/D1/D1-P(11506505) 1 HCX PL FLUOTAR L 20x/0.4 WD 6.9mm, Coverglass 0-2mm CORR; K6, C/C1/C1-P(11506242) 1 HCX PL FLUOTAR L 40x/0.6 WD 3.3-1.9mm, Coverglass 0-2mm CORR; IMC; K6/K8/K16, C/C1/C1-P(11506201) 1 ■ DIC systems 微分干涉(DIC)系統 Filter system analyzer cube, size k, For Transmitted Light DIC or Pol Size K(11513900) 1 Condenser prisms 聚光鏡ICT棱鏡 ICT condenser prism K6(11521521) 1 ICT condenser prism K3 diameter 23mm(11521594) 1 Condenser prisms 物鏡ICT棱鏡 IC-Prism B1 for objective(11555007) 1 IC-Prism C for objective(11555009) 1 IC-Prism D1 for objective(11555056) 1 IC objective prisms Man.Coded 4Pos DIC objective prism Turret for DMI(11522048) 1 Man. Analyzer DMI ICT/P(11522046) 1 ■ Stages 載物臺和附件 Fixed Stage Plate without Temperature Control(11522078) 1 Object guide for special holder frame(11522014) 1 Holding frame for Microtitter-Plate with a common footprint of 127 x 85 mm. (11520589) 1 Frame to fix different cultivation vessels (e.g. dishes, flasks or slides, also turned by 90°)(11533081) 1 ■ Leica DFC cameras 數碼攝像頭 Leica DFC450 C Digital Camera & SW Kit(12730412) 1 0.70x HC C-mount adapter(11541543) 1 ■ windows PC worksattion(國內采購) 1 | 詢價 |
4 | Leica DMI3000B倒置顯微鏡 浮雕相襯-熒光功能套裝 | 888923IMC | Leica DMI3000B研究級倒置顯微鏡 浮雕相襯-熒光套裝主要配置包括: ■主體部分 DMI3000B Base stand/DMI3000 B主機基座,含: DMI3000B Base stand Fluo manual, 100% Sideport(11888923) 1 Optic carrier (IMC)+100W Power Supply(11888912) 1 ■ Transmitted-light axes 透射光軸 Manual TL-Column illumination carrier incl. 30W Lamphouse, shutter, filter magazine(11888366) 1 Lamp house 107 left, 12V/100W Halogen, 2,5m(11504101) 1 Halogen Lamp 12V/100W (Osram 64625)(11500974) 1 ■ S1-28 Condensers 手動式聚光鏡 Manual condenser base S1–S28 with pivoting head(11522005) 1 Condenser head S28/0.55(11505234) 1 Set of light rings for Condenser S23/S28(11521505 IMC Modulator-Set for S23-28 Condenser(11522074) 1 ■ IMC-/IPH-Systems Front module for IMC(11888384) 1 IMC slider for objectives w. pupil B or C(11522075) 1 ■ Tube 目鏡筒 Bino ErgoTubes without Bertrand lens(11888372) 1 ■ Eyepieces 目鏡 Eyepiece HC PLAN s 10x/22 Br. M(11507807) 2 ■ Fluorescence lamp housings 熒光燈箱 Power Supply unit, ebq 100, for 100W high-pressure mercury burner(11500325) 1 Lamp housing 106z 6 Lenses Hg 100W 1-inch collector(11504114) 1 Lamp adapter 90 right(11504135) 1 Halogen Lamp 12V/100W (Osram 64625)(11500974) 1 ■ Fluorescence filter system 熒光濾塊系統 Filter System I3; size k(11513878) 1 Filter System N2.1 for Green Excitation; size k. (11513882) 1 Filter Cube A4, UV Fluorcube; size k(11513874) 1 ■ Objective 物鏡 HCX FL PLAN 5x/0.12 WD14.0mm; K3/K1; B1/B2(11506305) 1 HC PL FLUOTAR 10x/0.3 WD 11.0mm; K11/K3, D/D1/D1-P(11506505) 1 HCX PL FLUOTAR L 20x/0.4 WD 6.9mm, Coverglass 0-2mm CORR; K6, C/C1/C1-P(11506242) 1 HCX PL FLUOTAR L 40x/0.6 WD 3.3-1.9mm, Coverglass 0-2mm CORR; IMC; K6/K8/K16, C/C1/C1-P(11506201) 1 ■ Stages 載物臺和附件 Fixed Stage Plate without Temperature Control(11522078) 1 Object guide for special holder frame(11522014) 1 Holding frame for Microtitter-Plate, with a common footprint of 127×85 mm. (11520589) 1 Frame to fix different cultivation vessels(11533081) 1 ■ Leica DFC cameras 數碼攝像頭 Leica DFC450 C Digital Camera & SW Kit(12730412) 1 0.70x HC C-mount adapter(11541543) 1 ■ windows PC worksattion(國內采購) 1 | 詢價 |
-
