樣品均質破碎

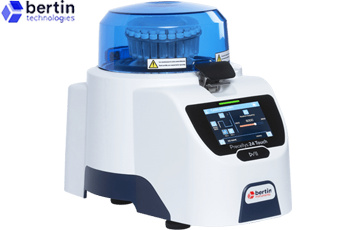

Bertin Precellys 24 Touch組織均質機
Precellys 24 Touch組織樣品均質機，可用于研磨、破碎、均質處理包括動物、植物、土壤、沉積物及微生物等多種來源的生物樣品，配合不同萃取試劑，用于快速、高效、穩定地提取樣品中的DNA、RNA、蛋白質及藥物成份。
設備名稱：組織均質機 組織勻漿儀 珠式研磨儀 Tissue Homogenizer bead-mill Homogenizer
制 造 商：Bertin Technologies公司 產 地：法國
品 牌：Bertin
型 號：Precellys 24 Touch
技術細節：見［技術規格］ 商品報價：見［訂貨指南］
主要功能用途
Precellys 24 Touch組織樣品均質機，可用于研磨、破碎、均質處理包括動物、植物、土壤、沉積物及微生物等多種來源的生物樣品，工作對象覆蓋了從濕軟大腦、肌肉組織到肌腱、頭發、骨骼和種子等堅硬、柔韌材料，可配合不同萃取試劑，快速、高效、穩定地提取樣品中的DNA、RNA、蛋白質及藥物成份。
技術特點
Precellys 24 Touch樣品均質機有以下特點：
樣品管為8字形3D，可以在幾秒鐘內破壞任何類型的樣品（即使是最堅硬的樣品），確保所有處理樣品的均質效率相同，具有完美的可重復性，同時減少處理時間（約30秒內使樣品研磨均質化），降低處理過程樣品升溫幅度。
直觀的觸摸屏界面，可在幾秒鐘內選擇協議設置，使用方便直觀。
樣品裝載符合人體工程學且安全。
專利的真空管鎖定系統（vacuum-based tube locking system），符合最嚴格實驗室環境（如BSL3）的安全要求。
技術規格
樣品工作容量 | 24×2 mL/0.5 mL |
鎖定系統 | 自動真空系統 |
轉速范圍 | 4500 rpm - 6800 rpm（以 100 rpm遞增設定） |
可設定工作程序數 | 無限制 |
可編程循環次數(Number of cycles) | 最多10個 |
循環時間長(Cycles time) | 達 90 秒 |
周期之間暫停(Pause between cycles) | 120 秒 |
噪音 | 小于70dB |
主機尺寸(W×D×H) | 408×287×390mm （開蓋時515mm） |
主機重量 | 23 kg |
認證合格 | CE, FCC PART 15 |
安裝運行條件
工作電源：90 - 250VAC / 50 - 60 Hz，1 kW
允許環境溫度：5 – 40℃
允許相對濕度：≤80%
組成配置
Precellys 24 Touch組織均質器工作系統有主機（含24×2mL工作頭）、研磨管、研磨珠組成。
基本耗材
Precellys 24 Touch組織均質器運行基本耗材分為研磨管、研磨珠以及研磨管-研磨珠組合套裝。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
2mL 研磨管 | Bertin | P000945-LYSK0-A | 500 pieces | 2mL Empty Tubes and Caps with O-ring 2mL管套件含500 個未組裝的管和蓋 | 詢價 詢價 詢價 |
2mL增強研磨管 | Bertin | P000943-LYSK0-A | 200 pieces | 2mL Reinforced Empty Tubes and Caps 已組裝好管和蓋 | 詢價 詢價 詢價 |
0.1mm氧化鋯珠 | Bertin | P000932-LYSK0-A | 500 preps | Zirconium oxide beads in bulk beads size: 0.1mm (450g, 500 preps) | 詢價 詢價 詢價 |
2.8mm氧化鋯珠 | Bertin | P000926-LYSK0-A | 500 preps | Zirconium oxide beads in bulk beads size: 2.8mm (325g, 500 preps) | 詢價 詢價 詢價 |
1.4mm氧化鋯珠 | Bertin | P000927-LYSK0-A | 500 preps | Zirconium oxide beads in bulk beads size: 1.4mm (325g, 500 preps) | 詢價 詢價 詢價 |
5.0mm氧化鋯珠 | Bertin | P000930-LYSK0-A | 100 beads | Zirconium oxide beads in bulk beads size: 5.0mm | 詢價 詢價 詢價 |
6.8mm氧化鋯珠 | Bertin | P000931-LYSK0-A | 100 beads | Zirconium oxide beads in bulk beads size: 6.8mm | 詢價 詢價 詢價 |
CK14 0.5mL 軟組織勻漿套裝 | Bertin | P000933-LYSK0-A | 50 preps | Soft tissue homogenizing CK14-0.5mL Kit Includes： 50 preps of 1.4mm ceramic beads in 0.5mL standard tubes. | 詢價 詢價 詢價 |
CK14 2mL 軟組織勻漿套裝 | Bertin | P000912-LYSK0-A | 50 preps | Soft tissue homogenizing CK14-2.0mL Kit Includes： 50 preps of 1.4mm ceramic beads in 2mL standard tubes. | 詢價 詢價 詢價 |
蛋白軟組織勻漿套裝 CK14 - 2mL | Bertin | P000973-LYSK0-A | 50 preps | Soft tissue homogenizing CK14-2mL Protein Safe Kit Includes： 50 preps of 1.4mm ceramic beads in 2mL Protein Safe tubes | 詢價 詢價 詢價 |
CK28-2mL 硬組織勻漿套裝 | Bertin | P000911-LYSK0-A | 50 preps | Hard Tissue homogenizing CK28-2mL kit 50 preps of 2.8mm ceramic beads in standard tubes | 詢價 詢價 詢價 |
CK28-2mL-R 硬組織勻漿套裝 | Bertin | P000916-LYSK0-A | 50 preps | Hard Tissue homogenizing CK28-2mL-R kit 50 preps of 2.8mm ceramic beads in reinforced tubes | 詢價 詢價 詢價 |
CK28-2mL-R 蛋白硬組織勻漿套裝 | Bertin | P000972-LYSK0-A | 50 preps | Hard Tissue homogenizing CK28-2mL-R Protein Safe kit 2.8mm ceramic beads in reinforced tube + Proteases inhibitor | 詢價 詢價 詢價 |
2mL CKMix 組織勻漿套裝 | Bertin | P000918-LYSK0-A | 50 preps | Tissue homogenizing CKMix - 2mL ceramic mix beads of 1.4mm and 2.8mm in 2mL tubes. | 詢價 詢價 詢價 |
韌性微生物裂解套裝 VK05 - 0.5mL | Bertin | P000934-LYSK0-A | 50 preps | Tough micro-organism lysing VK05-0.5mL kit includes 50 preps of 0.5mm glass beads in 0.5mL tubes. | 詢價 詢價 詢價 |
韌性微生物裂解套裝 VK05 - 2mL | Bertin | P000913-LYSK0-A | 50 preps | Tough micro-organism lysing VK05-2mL kit includes 50 preps of 0.5mm glass beads in 2mL tubes. | 詢價 詢價 詢價 |
微生物裂解套裝 VK01 - 2mL | Bertin | P000914-LYSK0-A | 50 preps | Micro-organism lysing kit VK01 - 2mL Includes 50 preps of 0.1mm glass beads in 2mL tubes. | 詢價 詢價 詢價 |
細菌裂解套裝 CK01 - 2mL | Bertin | P000919-LYSK0-A | 50 preps | Bacteria lysing kit CK01-2mL includes 50 preps of 0.1mm ceramic beads in 2mL tubes. | 詢價 詢價 詢價 |
SK38 - 2mL 土壤樣品研磨套裝 | Bertin | P000915-LYSK0-A | 50 preps | SK38 Soil grinding kit 50 preps of a mix of glass and ceramic beads in 2mL tubes | 詢價 詢價 詢價 |
硬組織研磨套裝 MK28 - 2mL | Bertin | P000910-LYSK0-A | 50 preps | MK28 Hard Tissue Grinding Kit 2mL Tubes with Screw Cap and Skirt 2.8mm stainless steel beads. | 詢價 詢價 詢價 |
硬組織研磨套裝 MK28-R - 2mL | Bertin | P000917-LYSK0-A | 50 preps | MK28-R Hard Tissue Grinding Kit Including: 2mL Reinforced Tubes with Screw Cap and Skirt 2.8mm stainless steel beads | 詢價 詢價 詢價 |
組織研磨套裝 CKMix50-R - 2mL | Bertin | P000922-LYSK0-A | 50 preps | CKMix50-R Tissue Grinding Kit 2mL Reinforced Tubes with Screw Cap, O-Ring and Skirt A prefilled mix beads of 2.8mm and 5.0mm | 詢價 詢價 詢價 |
干燥硬組織研磨套裝 CK68-R - 2mL | Bertin | P000923-LYSK0-A | 50 preps | Dry hard tissue grinding CK68 2mL-R kit prefilled ceramic beads of 6.8mm in 2mL reinforced tubes | 詢價 詢價 詢價 |
樣品研磨套裝 GK60 - 2mL | Bertin | P000924-LYSK0-A | 50 preps | Sample grinding GK60 - 2mL garnet flakes 0.7mm beads and one ceramic bead 2mL reinforced tubes | 詢價 詢價 詢價 |
Precellys 24 維護配件包 | Bertin | S000688-PR240-A | Set | Precellys 24 maintenance kit Contain: 2 vacuum joints 1 blocking plate 1 containment seal 1 anti-rotation tubing kit | 詢價 詢價 詢價 |
訂貨指南
Precellys 24 Touch組織均質機儀器出廠配置不含研磨管、研磨珠等耗材。
針對實驗室樣品材料處理體積、材料質地和均質技術要求，應選擇與樣品體積大小、類型相匹配的管子和與處理任務匹配的研磨珠，以實現可靠、高效和穩定處理效果。
品目 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
Precellys 24 Touch均質器 | Bertin | P002391-P24T0-A | each | Precellys 24 Touch Homogenizer Included: 1x PRECELLYS 24 (with 1 indented plate and 1 toric joint) 1x AC power cord 1x extra toric joint | 詢價 詢價 詢價 詢價 |
Precellys 24 Touch 均質機濕軟組織勻漿套裝 | Bertin | P002391-P24T0-AS | set | Precellys 24 Touch Homogenizer package Included: Precellys 24 Touch Homogenizer(P002391-P24T0-A) Tissue homogenizing CKMix - 2mL (P000918-LYSK0-A) | 詢價 詢價 詢價 |
Precellys 24 Touch 均質機硬材料研磨套裝 | Bertin | P002391-P24T0-AH | set | Precellys 24 Touch Homogenizer package Included: Precellys 24 Touch Homogenizer(P002391-P24T0-A) GK60-2mL Sample grinding kit(P000924-LYSK0-A) | 詢價 詢價 詢價 |
Precellys 24 Touch 均質機微生物裂解套裝 | Bertin | P002391-P24T0-AM | set | Minilys Homogenizer package Included: Precellys 24 Touch Homogenizer(P002391-P24T0-A) SK38 Soil grinding kit (P000915-LYSK0-A) | 詢價 詢價 詢價 |
