himac超速離心機轉頭適配離心管

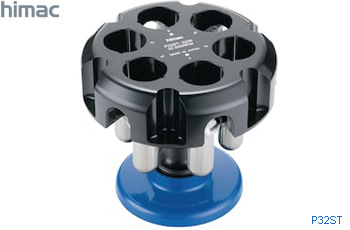

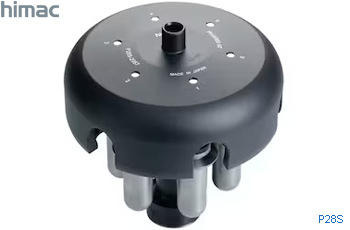

CP100NX/90NX/80NX超速離心機P32ST P28S水平轉頭

P32ST、P28S水平轉頭，工作容量6×40mL，離心管及配套適配器通用，常用于密度梯度離心分離純化。適用于Himac CP100NX、CP90NX和CP80NX立式超速離心機。

商品名稱：水平轉頭 甩平吊籃轉頭Swinging bucket rotor

制 造 商：Eppendorf Himac Technologies公司

品    牌：Himac

轉頭配套離心管及適配器報價見：［訂購信息］

詳細描述

P32ST、P28S水平轉頭，最大工作容量6×40mL，主要用于密度梯度離心分離純化。適用于Himac CP100NX、CP90NX和CP80NX立式超速離心機。

P28S開發使用較早，吊籃安裝為傳統轉頭側面掛載方式。P32ST為新型頂部下滑式掛載方法，操作更便捷，轉頭轉速高、分離效能高，可節省離心時間。

1、技術規格

Rotor type

P32ST

P28S

Max. speed

32000 rpm

28000 rpm

Max. RCF

180000×g

146000×g

Allowable density at maximum speed

1.2g/mL

1.2g/mL

K Factor at maximum speed

198

252

Nominal rotor capacity

40mL×6

40mL×6

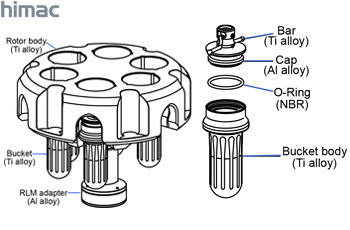

Material of the rotor body

Ti alloy

Al alloy

Material of the buckets

Ti alloy

NA

Tube size

φ2.6×9.0 cm

φ26×90 mm

Weight(includes bucket and cap)

7.1 kg

6.3 kg



2、轉頭標準組件(Packing list)

Rotor type

P32ST

P28S

40PA Tube

5720411139  2pkgs(100pcs)

Tweezers

5720411243  1x

NBR O-Ring

5720410172  18x

Bucket Stand

5720411379  1x

Rotor Stand

5720410232  1x

Lubricate for Screw

5720411230  1x

Silicone Vacuum Grease

5720850317  1x

Tool Box (C)

5720850222  1x





訂購信息

P32ST、P28S水平轉頭水平轉頭標準配置含40PA薄壁開口超速離心管，各配套離心管兩個轉頭間可通用。

除40PA管，還可提供40PA、40PET、40SS Tube(B)和33PA熱封管。

品名

品牌

貨號

規格

描述

報價

P32ST Swinging bucket rotor

Himac

5720214003

1 set

P32ST Swinging bucket rotor with the RLM adapter

Nominal rotor capacity: 6×40mL

32000 rpm/RCF 180000×g

詢價

P28S Swinging bucket rotor

Himac

5720214005

1 set

P28S Swinging bucket rotor with the RLM adapter

Nominal rotor capacity: 6×40mL

28000 rpm/RCF 141000×g

詢價

備用吊籃密封圈

Himac

5720410172

12pcs/pk

NBR O-Ring applicable to P28S/P32ST/R25ST rotors

詢價

詢價

40PA薄壁開口管

Himac

5720411139

50pcs/pk

40PA Tube for rotors P28S/P45AT/P50AT2/P70AT

Tube Dimensions (outer diameter × height): 2.6×9.0cm

Net   Sample Volume: 32.5 mL

Material:   PP

Maximum   Speed: 70000rpm/RCF 505000×g

詢價

詢價

40PC薄壁開口管

Himac

5720411140

50pcs/pk

40PC Tube applicable to P32ST/P28S/R25ST rotors

Tube Dimensions (outer diameter × height): 2.6×9.0cm

Net   Sample Volume: 38.7 mL

Material:   PC

Maximum Speed: 28000rpm/RCF 141000×g

詢價

詢價

40PET薄壁開口管

Himac

5720411148

50pcs/pk

40PET Tube for use with E3-AL Cap

Tube Dimensions (outer diameter × height): 2.6×9.0cm

Net   Sample Volume: 37 mL

Material:   PET

Maximum Speed: 40000rpm/RCF 165000×g

詢價

詢價

40SS不銹鋼離心管(B)

Himac

5720411147

2pcs/pk

40SS Tube(B) use with E-SS Lid (B)

Tube Dimensions (outer diameter × height): 2.6×9.0cm

Net   Sample Volume: 23.8 mL

Material:   SST

Maximum   Speed: 32000rpm/RCF 105000×g

詢價

詢價

33PA   Seal Tube

Himac

5720411134

50pcs/pk

Tube Dimensions: 2.6×8.8cm

Net Sample Volume: 34 mL

Material:   PP

Maximum   Speed: 28000rpm/RCF 141000×g

詢價

詢價

E4蓋帽墊片

Himac

5720411293

1pc/pk

E4 Space Cap used in  P28S P32ST R25ST rotors

For 33PA Seal Tube

詢價
