Optima超速離心機轉頭適配離心管

Optima XPN-100超速離心機Type 70 Ti/Type 50.2 Ti角轉頭

Type 70 Ti與Type 50.2 Ti定角轉頭離心39mL離心管，滿足顆粒差速離心、DNA和病毒等平衡密度沉降。適用于Optima XPN-100/XPN-90/XPN-80和Optima XE-100/XE-90系列超速離心機。

商品名稱：Type 70 Ti Type 50.2 Ti 定角轉頭 Fixed-Angle Titanium Rotor

制 造 商：美國貝克曼庫爾特(Beckman Coulter)公司

品    牌：Beckman

轉頭配套適配器、離心管見:［訂購信息］

詳細描述

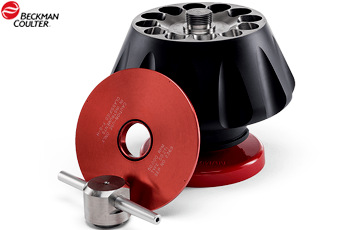

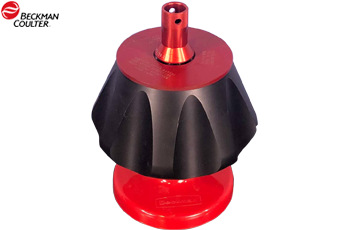

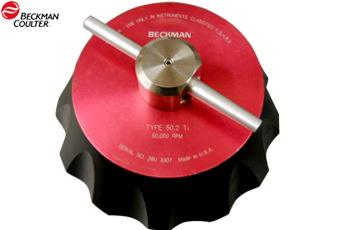

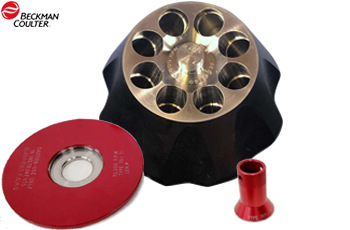

Type 70 Ti定角轉頭，額定轉速70000 rpm，離心管-轉軸成23°夾角，最大容量8×39mL離心管。Type 50.2 Ti額定轉速50000 rpm，離心管-轉軸成24°夾角，可離心多達 12 個39mL離心管，滿足顆粒差速離心分離、DNA和病毒等顆粒平衡密度沉降。適用于貝克曼Optima XPN-100/XPN-90/XPN-80系列高端立式超速離心機和Optima XE-100/XE-90系列基礎型超速離心機。

轉子由鈦制成，并涂有黑色聚氨酯漆。鋁制蓋子和手柄經過紅色陽極氧化處理，具有耐腐蝕性。蓋子和手柄中的丁腈橡膠制成的 O 形圈在離心過程中保持轉子內部的大氣壓力。蓋子上的四個小孔為臨時通氣口，防止在泄漏時壓力積聚和擠壓O形圈。

超速離心機配備的光電探測器與轉頭底部的超速盤配合，對轉速實時監測。如檢測到實際轉速超過最大允許速度值，則系統自動關閉轉頭的運行。

1、轉頭使用前的準備

確保轉子中的金屬螺紋清潔并用潤滑劑（Spinkote lubricant 306812）均勻潤滑以減少轉頭蓋啟閉操作中螺紋的磨損。還要確保O形圈均勻地涂有硅真空潤滑脂（silicone vacuum grease 335148）以確保離心孔內的真空密封性能。

將裝滿的容器對稱地裝入轉子，至于轉頭中位置相對的管子，必須用相同密度的液體填充到相同的水平，確保轉頭平衡。

在安裝轉子蓋之前，請確保在管子上放置正確的適配器（如果需要）。蓋上蓋子后，可徒手用轉頭手柄擰緊轉頭蓋。



2、樣品移除與回收

將轉子垂直向上提起并離開驅動軸即可從離心機中取出，通過逆時針擰動轉頭手柄即可拆下轉子蓋。

當使用了轉頭蓋帽適配器時（spacer），使用適配器移除工具和管蓋夾取工具，取出離心孔中墊片。





3、轉頭技術規格

轉頭型號

Type 70Ti

Type 50.2

最高速度

70000 rpm

50000  rpm

最高轉速時溶液額定密度

(Density rating at maximum speed)

1.2 g/mL

最高轉速時相對離心場（Relative Centrifugal   Field）

最大離心半徑/最大離心力

Rmax   91.9 mm/504000×g;

Rmax   107.9 mm/302000×g

平均離心半徑/平均離心力

Rav   65.7 mm/361000×g;

Rav   81.2 mm/227000×g

最小離心半徑/最小離心力

Rmin   39.5 mm/217000×g;

Rmin   54.4 mm/152000×g

最大速度下 k 系數(k factor)

44

69

額定離心管尺寸

(Nominal tube dimensions)

25 × 89 mm

額定離心容量(Nominal tube   capacity)

8×39 mL

12×39 mL

達到最大速度的近似加速時間（滿載）

8.5 min

10.5 min

從最大速度(滿載)開始的減速時間

7.0 min

10.0 min

滿載轉頭重量

9 kg

13.6 kg

轉頭的材質

鈦合金



4、轉頭配套離心管

Type 70 Ti、Type 50.2 Ti轉頭適配的離心管基本一致，標準配置不含離心管。

轉頭兼容4.0mL-38.5mL開口管、熱封管、離心瓶和不銹鋼離心管。



訂購信息

品名

品牌

貨號

規格

描述

報價

Type 70 Ti角轉頭

Beckman

337922

set

Type   70 Ti Rotor Assembly

Standard   accessories includes:

3x  011757    O-rings

3x  870612    O-rings

2x  335585    Over-speed Disks

詢價

詢價

Type 50.2 Ti角轉頭

Beckman

337901

set

Type   50.2 Ti Rotor Assembly

Standard   accessories includes:

3x  834301    O-rings

3x  854519    O-rings

2x  330336    Over-speed Disks

詢價

詢價







39mL熱封管工作套裝

Beckman

348178

set

39mL   Quick-Seal Tube Kit

includes:

2盒  342414  Polypropylene Tubes

2盒  344326  Ultra-Clear Tubes

12個  342699  Spacers

1個  348124  Tube Rack

1個  306812  Spinkote Lubricant

1個  335148  Vacuum Grease

(Cordless   Tube Topper Kit required)

詢價

詢價

32.4mL 指封管工作套裝

Beckman

361662

set

32.4mL   Polypropylene OptiSeal Tubes kit

includes:

4盒  361625  of OptiSeal Tubes

12個  361669  Spacers(6 pkg of 2)

1個  361646  OptiSeal Tube Rack

1個  361668  Tube Extraction Too

1個  338765  Spacer Removal Tool

詢價

詢價

38.5mL薄壁管工作套裝

Beckman

348177

set

38.5mL   Open-Top Tube Kit

inclues:

2盒38.5 mL 薄壁開口管    326823  Polypropylene Tubes

2盒38.5 mL 超凈開口管    344058  Ultra-Clear Tubes

12個  C20182  Tube Caps

1個  306812  Spinkote Lubricant

1個  335148  Vacuum Grease

(331202   and 305075 Tools required)

詢價

詢價

35.5mL薄壁管工作套裝

Beckman

348172

set

35.5mL Polypropylene Open-Top Tube kit for Type 70Ti

includes:

4盒  344367  35.5mL Polypropylene Tubes

10個  337927  Tube Caps

1個  306812  Spinkote Lubricant

1個  335148  Vacuum Grease

(338841   and 305075 Tools required)

詢價

詢價

27mL g-Max管工作套裝

Beckman

357346

set

27mL Quick-Seal g-Max Polypropylene Tube Kit

includes:

50個  27 mL g-Max快封管  343665

12個  管帽適配器  343448

1個  g-Max取管鑷子  878446

1個  取帽工具  338765

詢價

詢價







39mL超凈熱封管

Beckman

344326

50/pkg

38.5mL   Quick-Seal Round-Top Ultra-Clear Tube

Nominal   Size: 25 x 89mm - 50Pk

Applicable   Max. speed: 70000rpm

Aluminum   Tube Spacer 342699 Required

詢價

詢價

39mL超凈熱封管

Beckman

C14299

 48/pkg

39mL   Ultra-Clear Quick-Seal tube

Certified   Free & Sterile（無菌無酶）

Nominal   Size: ?25×89 mm

Applicable   Max. speed: 70000rpm

Aluminum   Tube Spacer 342699 Required

詢價

詢價

39mL熱封管

Beckman

342414

50/pkg

39mL   Quick-Seal Round-Top Polypropylene Tube

Nominal   Size: 25 x 89mm - 50Pk

Applicable   Max. speed: 70000rpm

Aluminum   Tube Spacer 342699 Required

詢價

詢價

39mL熱封管

Beckman

C14304

48/pkg

39mL Quick-Sea Round Bottom Polypropylene Tube

Sterile   + Certified Free（無菌無酶）

Nominal   Size: 25 x 89mm - 48Pk

Applicable   Max. speed: 70000rpm

Aluminum   Tube Spacer 342699 Required

詢價

詢價

Φ25mm管帽墊片

Beckman

342699

1/pkg

25mm   Diameter Aluminum Tube Spacer

Applicable Rotor: Type 70 Ti, Type 50.2 Ti

詢價

詢價







38.5mL超凈薄壁開口管

Beckman

344058

pkg/50

38.5mL Open-Top Thinwall Ultra-Clear Tube

Nominal Size: 25 x 89mm

Applicable Max. speed: 60000rpm

Required Cap Spacers C20182

詢價

詢價

38.5mL薄壁開口管

Beckman

326823

pkg/50

38.5mL Open-Top Thinwall Polypropylene Tube

Nominal Size: 25 x 89mm

Applicable Max. speed: 60000rpm

Required Cap Spacers C20182

詢價

詢價

38.5mL管帽組件

Beckman

C20182

1/pkg

25mm diameter Aluminum Cap assy

詢價

詢價







35.5mL薄壁開口管

Beckman

344367

50/pkg

35.5mL   Open-Top Thinwall Polypropylene Tube

Nominal   Size: 25×83mm - 50Pk

Applicable   Ultracentrifuge Rotors: Type 70 Ti

Applicable   Max. speed: 70000rpm

Required   Tube Cap Assembly 337927

詢價

詢價

鋁/鈦管蓋組件

Beckman

337927

1/pkg

22mm Diameter Aluminum/Titanium Cap Assembly

Applicable   Ultracentrifuge Rotor Type 70 Ti

詢價

詢價







33.5mL熱封管

Beckman

344623

50/pkg

33.5mL Quick-Seal Bell-Top Polypropylene Tube

Nominal   Size: 25 x 83mm

Applicable   Max. speed: 70000rpm

Tube   Spacer 344635 Required

詢價

詢價

Φ25mm管帽墊片

Beckman

344635

1/pkg

25mm   Diameter Delrin Tube Spacer

Applicable Rotors: Type 70 Ti, Type 50.2 Ti

詢價

詢價







32.4mL   指封管

Beckman

361625

56/pkg

32.4mL   OptiSeal Polypropylene Tube

Nominal   Size: 26 x 77mm

Applicable   Max. speed: 70000rpm

Tube   Spacer 361669 Required

詢價

詢價

Φ25mm管帽墊片

Beckman

361669

2/pkg

25mm   Diameter Ultem Tube Spacer

Applicable Rotors:  Type 70Ti,   Type 50.2Ti

詢價

詢價







32mL厚壁開口管

Beckman

355642

25/pkg

32mL   Open-Top Thickwall Polypropylene Tube

Nominal   Size: 25 x 89mm - 25Pk

Applicable   Max. speed: 60000rpm

Cap   Assembly 338906 Required

詢價

詢價

32mL透明厚壁開口管

Beckman

355631

25/pkg

32mL   Open-Top Thickwall Polycarbonate Tube

Nominal   Size: 25 x 89mm - 25Pk

Applicable   Max. speed: 60000rpm

Cap   Assembly 338906 Required

詢價

詢價

32mL管蓋組件

Beckman

338906

1/pkg

20mm   Diameter Aluminum Tube Cap Assembly

Applicable Rotors:  Type 70 Ti,   Type 50.2 Ti

詢價

詢價







27mL熱封管

Beckman

343665

50/pkg

27mL   Quick-Seal Bell-Top Polypropylene Tube

Nominal   Size: 25 x 64mm - 50Pk

Applicable   Max. speed: 70000rpm

Required   Noryl Tube Spacer 343448

詢價

詢價

27mL超凈熱封管

Beckman

344323

50/pkg

27mL   Quick-Seal Bell-Top Ultra-Clear Tube

Nominal   Size: 25 x 64mm - 50Pk

Applicable   Max. speed: 70000rpm

Required   Quick-Seal Noryl Tube Spacer 343448

詢價

詢價

15mL熱封管

Beckman

343664

50/pkg

15mL   Quick-Seal Bell-Top Polypropylene Tube

Nominal   Size: 25 x 38mm - 50Pk

Applicable   Max. speed: 70000rpm

Required   Noryl Tube Spacer 343448

詢價

詢價

15mL超凈熱封管

Beckman

344324

50/pkg

15mL   Quick-Seal Bell-Top Ultra-Clear Tube

Nominal   Size: 25 x 38mm - 50Pk

Applicable   Max. speed: 70000rpm

Required   Noryl Tube Spacer 343448

詢價

詢價

Φ25mm浮置墊片

Beckman

343448

1/pkg

25mm   Diameter Noryl Tube Spacer

詢價

詢價







26.3mL透明離心瓶

Beckman

355618

6/pkg

26.3mL Polycarbonate Bottle with Cap Assembly

Nominal   Size: 25 x 89mm

Applicable   Max. speed: 60000rpm

詢價

詢價

26.3mL透明離心瓶身

Beckman

355654

6/pkg

26.3mL   Polycarbonate Bottle

Cap   Assembly Required

詢價

詢價

26.3mL瓶蓋組件

Beckman

355619

6/pkg

Bottle   Cap Assembly (25.0 mm dia)

詢價

詢價







13.5mL薄壁開口管

Beckman

326814

50/pkg

13.5mL   thinwall polypropylene Tube

Nominal   Size: 16×76 mm

Applicable   Max. speed: 40000rpm

Required   Cap Assembly 330860

Required   tube Adapter 303307

詢價

詢價

13.5mL超凈薄壁開口管

Beckman

344085

50/pkg

13.5mL   Open-Top Thinwall Ultra-Clear Tube

Nominal   Size: 16 x 76mm

Applicable   Max. speed: 40000rpm

Required   Cap Assembly 330860

Required   tube Adapter 303307

詢價

詢價

13.5mL管蓋組件

Beckman

330860

1/pkg

13.4mm Diameter Aluminum Tube Cap Assembly

詢價

詢價

Φ16mm管套適配器

Beckman

303307

1/pkg

16mm   Diameter Delrin Tube Adapter

詢價

詢價







10mL透明厚壁開口管

Beckman

355630

25/pkg

10mL   Open-Top Thickwall Polycarbonate Tube

Nominal   Size: 16 x 76mm - 25Pk

Applicable   Max. speed: 40000rpm

Required   Cap Assembly 338907

Required   tube Adapter 303307

詢價

詢價

10mL厚壁開口管

Beckman

355640

25/pkg

10mL   Open-Top Thickwall Polypropylene Tube

Nominal   Size: 16 x 76mm - 25Pk

Applicable   Max. speed: 40000rpm

Required   Cap Assembly 338907

Required   tube Adapter 303307

詢價

詢價

10mL管蓋組件

Beckman

C39378

1/pkg

16mm Diameter   Aluminum Tube Cap Assembly

C39378(替換貨號338907)

詢價

詢價

Φ16mm管套適配器

Beckman

303307

1/pkg

16mm   Diameter Delrin Tube Adapter

詢價

詢價







6.5mL超凈薄壁開口管

Beckman

344088

50/pkg

6.5mL   Open-Top Thinwall Ultra-Clear Tube

Nominal   Size: 13 x 64mm - 50Pk

Applicable   Max. speed: 45000rpm

Required   Cap Spacer C20178

Required   Adapter 303392

詢價

詢價

6.5mL薄壁開口管

Beckman

326820

50/pkg

6.5mL   Open-Top Thinwall Polypropylene Tube

13   x 64mm - 50Pk

Applicable   Max. speed: 45000rpm

Required   Cap Spacer C20178

Required   Adapter 303392

詢價

詢價

6.5mL超凈薄壁開口管

Beckman

C14296

 48/pkg

6.5mL   Open-Top Thinwall Ultra-Clear Tube

Sterile   + Certified Free（無菌無酶）

Nominal   Size: 13 x 64mm - 48Pk

Applicable   Max. speed: 45000rpm

Required   Cap Spacer C20178

Required   Adapter 303392

詢價

詢價

Φ13mm管適配器

Beckman

303392

1/pkg

13mm   Diameter Delrin Tube Adapter

詢價

詢價

13mL管蓋組件

Beckman

C20178

1/pkg

Cap   Spacers for 6.5mL Open-Top ube

詢價

詢價







4mL厚壁開口管

Beckman

355644

25/pkg

4mL   Open-Top Thickwall Polypropylene Tube

Nominal   Size: 13 x 64mm - 25Pk

Applicable   Max. speed: 43000rpm

Required   Adapter 303392

詢價

詢價

4mL透明厚壁開口管

Beckman

355645

25/pkg

4mL   Open-Top Thickwall Polycarbonate Tube

Nominal   Size: 13 x 64mm - 25Pk

Applicable   Max. speed: 43000rpm

Required   Adapter 303392

詢價

詢價

Φ13mm管適配器

Beckman

303392

1/pkg

13mm   Diameter Delrin Tube Adapter

詢價

詢價
