Optima超速離心機轉頭適配離心管

Optima XPN-100/90/80超速離心機Type 90 Ti/Type 70.1 Ti角轉頭

Type 90 Ti、Type 70.1 Ti定角轉頭，使用相同的2.0-13.5mL超速離心管，可滿足樣品的速度區帶離心、DNA和病毒等顆粒沉降、和脂質密度浮選等應用需求。適用于Optima XPN-100/XPN-90/XPN-80系列和Optima XE-100/XE-90系列立式超速離心機。

商品名稱：Type 90 Ti  Type 70.1 Ti 角轉頭  Fixed-Angle Titanium Rotor

制 造 商：美國貝克曼庫爾特(Beckman Coulter)公司

品    牌：Beckman

轉頭配套適配器、離心管見:［訂購信息］

詳細描述

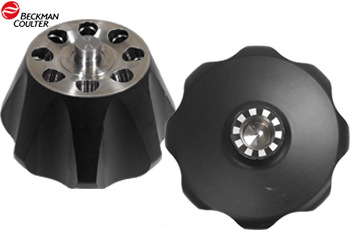

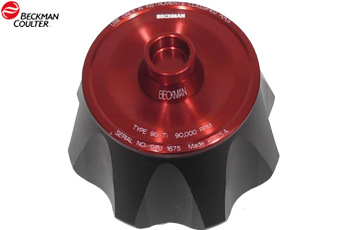

Type 90 Ti定角轉頭，離心管-轉軸成25°夾角，工作容量8×13.5mL，額定轉速90000 rpm。

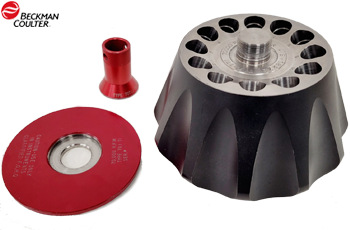

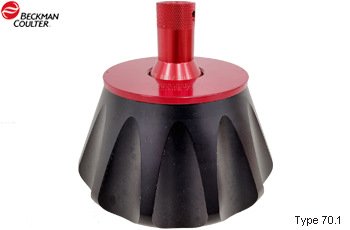

Type 70.1 Ti定角轉頭，離心管-轉軸成24°角，每輪運行可離心12×13.5mL離心管，額定轉速70000 rpm。

兩個轉頭的離心力可滿足樣品的速度區帶離心、DNA和病毒等顆粒沉降、和脂質密度浮選等應用需求。適用于貝克曼Optima XPN-100/XPN-90/XPN-80系列高端立式超速離心機和Optima XE-100/XE-90系列基礎型超速離心機。

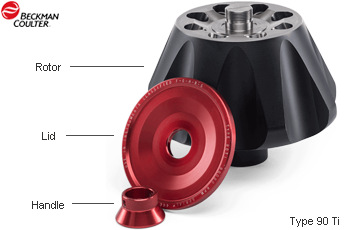

轉子由鈦制成，并涂有黑色聚氨酯漆。鋁制蓋子和手柄經過紅色陽極氧化處理，具有耐腐蝕性。蓋子和手柄中的丁腈橡膠制成的 O 形圈在離心過程中保持轉子內部的大氣壓力。蓋子上的四個小孔為臨時通氣口，防止在泄漏時壓力積聚和擠壓O形圈。

超速離心機配備的光電探測器與轉頭底部的超速盤配合，對轉速實時監測。如檢測到實際轉速超過最大允許速度值，則系統自動關閉轉頭的運行。

1、轉頭使用前的準備

確保轉子中的金屬螺紋清潔并用潤滑劑（Spinkote lubricant 306812）均勻潤滑以減少轉頭蓋啟閉操作中螺紋的磨損。還要確保O形圈均勻地涂有硅真空潤滑脂（silicone vacuum grease 335148）以確保離心孔內的真空密封性能。

將裝滿的容器對稱地裝入轉子，至于轉頭中位置相對的管子，必須用相同密度的液體填充到相同的水平，確保轉頭平衡。

在安裝轉子蓋之前，請確保在管子上放置正確的適配器（如果需要）。蓋上蓋子后，可徒手用轉頭手柄擰緊轉頭蓋。



2、樣品移除與回收

將轉子垂直向上提起并離開驅動軸即可從離心機中取出，通過逆時針擰動轉頭手柄即可拆下轉子蓋。

當使用了轉頭蓋帽適配器時，使用適配器移除工具和管蓋夾取工具，取出離心孔中墊片。



3、轉頭技術規格

轉頭型號

TYPE 90 Ti

TYPE 70.1 Ti

最高速度

90000 rpm

70000 rpm

最高轉速時溶液額定密度

(Density rating at maximum speed)

1.2 g/mL

最高轉速時相對離心場（Relative Centrifugal   Field）

最大離心半徑/最大離心力

Rmax 76.5 mm/694000×g

Rmax 82.0 mm/450000×g

平均離心半徑/平均離心力

Rav 55.4 mm/503000×g

Rav 61.2 mm/336000×g

最小離心半徑/最小離心力

Rmin 34.2 mm/310000×g

Rmin 40.5 mm/222000×g

最大速度下 k 系數(k factor)

25

36

額定離心管尺寸

(Nominal tube dimensions)

16 × 76 mm

額定離心容量(Nominal tube   capacity)

8×13.5 mL

12×13.5 mL

達到最大速度的近似加速時間（滿載）

6 min

6.5 min

從最大速度(滿載)開始的減速時間

4.5 min

4.0 min

滿載轉頭重量

5 kg

5.9 kg

轉頭的材質

鈦合金



4、轉頭配套離心管

Type 90 Ti、Type 70.1 Ti轉頭適配的離心管一致（標準配置不含離心管）。

轉頭兼容2.0mL-13.5mL開口管、熱封管和離心瓶。轉頭標準配置不含離心管。

指封管、Quick-Seal管需要管帽墊片/墊片支持，保護離心樣品管安全。薄壁開口管(Thinwall)和超透明開口管(Ultra-Clear)，應盡可能滿地多填充試管，以防止離心過程中試管塌陷。為防止上樣過程樣品溢出，須添加配套管蓋

厚壁管可以帶或不帶蓋子進行離心（至少一半填充）。

Quick-Seal離心管有效密封需用管蓋熱密封器（Cordless Tube Topper）工作套件操作和配套離心管架。

離心管及配套適配器、管蓋詳情參考“訂購信息”。



訂購信息

品名

品牌

貨號

規格

描述

報價

Type 90 Ti角轉頭

Beckman

355530

set

Type 90 Ti Rotor   Assembly

Standard   accessories includes:

3x  839347    O-rings

3x  876089    O-rings

2x  355539    Over-speed Disks

1x  356959    Handle Tool

詢價

詢價

Type   70.1 Ti角轉頭

Beckman

342184

set

Type   70.1 Ti Rotor Assembly

Standard   accessories includes:

3x  011757    O-rings

3x  858125    O-rings

2x  335585    Over-speed Disks

詢價

詢價







13.5mL熱封管工作套裝

Beckman

348179

set

13.5mL Quick-Seal   Tube Kit

includes:

2盒    342413  13.5mL Quick-Seal Polypropylene Tubes

2盒    344322  13.5mL Quick-Seal Ultra-Clear Tubes

12個    342695  Tube Cap Spacers

1個    348123  Tube Rack

1個    306812  Spinkote Lubricant

1個    335148  Vacuum Grease

(Cordless Tube   Topper Kit required)

詢價

詢價

13.5mL薄壁開口管工作套裝

Beckman

348180

set

13.5mL Open-Top   Tube Kit

includes:

2盒    326814  13.5mL Open-Top   Polypropylene Tubes

2盒    344085  13.5mL Open-Top   Ultra-Clear Tubes

12個    341968  Tube Caps

1個    306812  Spinkote Lubricant

1個    335148  Vacuum Grease

(331202 and 305075   Tools required)

詢價

詢價

8.9mL指封管工作套裝

Beckman

361660

set

8.9mL OptiSeal   Polypropylene Tube Kit

includes:

4盒    361623  8.9mL OptiSeal Tubes

12個    361670  Tube Cap Spacers

1個    361642  OptiSeal Tube Rack

1個    361668  Tube Extraction Tool

1個    338765  Spacer Removal Tool

詢價

詢價

6.3mL g-Max管工作套裝

Beckman

357334

set

6.3mL g-MAX   Quick-Seal Polypropylene tube Kit

includes:

50個  6.3mL g-MAX Quick-Seal Polypropylene tube 345830

12個  管帽適配器    345828

1個    g-Max取管鑷子  878446

1個  取帽工具    338765

詢價

詢價

4.2mL g-Max管工作套裝

Beckman

357332

pkg/50

4.2mL Quick-Seal   g-Max Polypropylene tube Kit

includes:

50個    4.2mL g-Max管  356562

12個  管帽適配器    345828

1個    g-Max取管鑷子  878446

1個  取帽工具    338765

詢價

詢價







13.5mL超凈熱封管

Beckman

344322

50/pkg

13.5mL Quick-Seal   Round-Top Ultra-Clear Tube

Nominal Size: 16 x   76mm - 50Pk

Applicable Rotor: Type 90 Ti, Type 70.1 Ti

Applicable Max.   speed 90000rpm

Required Red   Aluminum Spacer 342695

詢價

詢價

13.5mL熱封管

Beckman

342413

50/pkg

13.5mL Quick-Seal Round-Top Polypropylene Tube

Nominal Size: 16 x   76mm - 50Pk

Applicable Max.   speed 90000rpm

Required Red   Aluminum Spacer 342695

詢價

詢價

13.5mL無菌熱封管

Beckman

C14306

48/pkg

13.5mL Quick-Seal   Round-Top Polypropylene Tube

Nominal Size: 16 x   76mm - 48Pk

Sterile + Certified   Free（無菌無酶）

Required Red   Aluminum Spacer 342695

詢價

詢價

Φ16mm管帽墊片

Beckman

342695

1/pkg

16mm Diameter   Auminum Tube Spacer

Applicable Rotors:  Type 90 Ti,   Type 70Ti, MLA-55

詢價

詢價

Φ16mm離心管架

Beckman

348123

1/pkg

Tube Rack (16.0mm   Tubes)

Applicable tubes :

Quick-Seal   Ultra-Clear Tubes (344322)

Quick-Seal   Polypropylene Tubes 344622)

詢價

詢價







13.5mL薄壁開口管

Beckman

326814

50/pkg

13.5mL thinwall   polypropylene Tube

Nominal Size: 16×76   mm

Applicable Rotor: Type 90 Ti,Type 70.1 Ti

Applicable Max.   speed 80000rpm

Required Titanium Cap   Assembly 341968

詢價

詢價

13.5mL超凈薄壁開口管

Beckman

344085

50/pkg

13.5mL Open-Top   Thinwall Ultra-Clear Tube

Nominal Size: 16 x   76mm

Applicable Max.   speed 80000rpm

Required Titanium Cap   Assembly 341968

詢價

詢價

13.5mL管蓋組件

Beckman

341968

1/pkg

13.4mm Diameter   Tube Cap Assembly

Applicable Rotors:  Type 90 Ti, Type 70.1 Ti, MLA-55

適用于326814,   344085

詢價

詢價







10mL透明厚壁開口管

Beckman

355630

25/pkg

10mL Open-Top   Thickwall Polycarbonate Tube

Nominal Size: 16 x   76mm - 25Pk

Applicable Max.   speed 50000rpm

Required Caps:   C39378(替換338907）

詢價

詢價

10mL厚壁開口管

Beckman

355640

25/pkg

10mL Open-Top   Thickwall Polypropylene Tube

Nominal Size: 16 x   76mm - 25Pk

Applicable Max.   speed 30000rpm

Required Caps:   C39378(替換338907）

詢價

詢價

10mL管蓋組件

Beckman

C39378

1/pkg

16mm Diameter   Aluminum Tube Cap Assembly

C39378(替換貨號338907)

詢價

詢價







10.4mL 透明離心瓶

Beckman

355603

pkg/6

10.4mL   Polycarbonate Bottle with Cap Assembly

Nominal Size:   16×76mm

Applicable Max.   speed 65000rpm

詢價

詢價







10.4mL 透明離心瓶無蓋

Beckman

355651

25/pkg

10.4mL Polycarbonate Bottle without Cap Assembly

Required Cap   Assembly 355604

詢價

詢價

10.4mL瓶蓋組件

Beckman

355604

6/pkg

16mm Diameter Noryl   Cap Assembly Bottle

Applicable   Ultracentrifuge Rotors: Type 90 Ti

詢價

詢價







10mL熱封管

Beckman

344622

50/pkg

10mL Quick-Seal   Bell-Top Polypropylene Tube

Nominal Size: 16 x   67mm - 50Pk

Applicable Max.   speed 90000rpm

Required Cap Spacer:   344676

詢價

詢價

Φ16mm管帽墊片

Beckman

344676

1/pkg

16mm Diameter Noryl   Tube Spacer

Applicable Rotor: Type 90 Ti, Type 70.1 Ti, MLA-55

詢價

詢價

Φ16mm離心管架

Beckman

348123

1/pkg

Tube Rack (16.0mm   Tubes)

Applicable :

Quick-Seal Ultra-Clear Ultracentrifuge Tubes (344322)

Quick-Seal   Polypropylene Tubes 344622)

詢價

詢價







8.9mL 指封管

Beckman

361623

56/pkg

8.9mL OptiSeal   Polypropylene Tube

Nominal Size: 16 x   60mm - 56Pk

Applicable Max.   speed 90000rpm

Required Cap Spacer:   361670

詢價

詢價

Φ16mm管帽墊片

Beckman

361670

2/pkg

16mm Diameter Noryl   Tube Spacer

Quantity of Two

Product No:361670

Applicable Rotor: Type 70.1 Ti, Type 90Ti, MLA-55.

適用于361623

詢價

詢價

指封管架

Beckman

361642

1/pkg

16 x 60mm Tube Rack

詢價

詢價







6.5mL超凈薄壁開口管

Beckman

C14296

48/pkg

6.5mL Open-Top   Thinwall Ultra-Clear Tube

Nominal Size: 13 x   64mm - 48Pk

Sterile + Certified   Free（無菌無酶）

Applicable Max.   speed 50000rpm

Required Adapter: 303313

詢價

詢價

Φ13mm管套適配器

Beckman

303313

1/pkg

13mm Diameter   Delrin Tube Adapter

詢價

詢價







6.3mL熱封管

Beckman

345830

pkg/50

6.3mL Quick-Seal   Bell-Top Polypropylene Tube

Nominal Size: 16 x   44mm - 50Pk

Applicable Max.   speed 90000rpm

Required Noryl   Floating Spacer 345828

詢價

詢價

4.2mL熱封管

Beckman

356562

50/pkg

4.2mL Quick-Seal   Bell-Top Polypropylene Tube

Nominal Size: 16 x   38mm - 50Pk

Applicable Max.   speed 90000rpm

Required Floating   Spacer 345828

詢價

詢價

Φ16mm管帽墊片

Beckman

345828

1/pkg

16mm Diameter Noryl   Floating Tube Spacer

Applicable Rotor: Type 90 Ti, Type 70.1 Ti, MLA-55

詢價

詢價

Φ16mm離心管架

Beckman

348123

1/pkg

Tube Rack (16.0mm   Tubes)

Applicable :

Quick-Seal Ultra-Clear Ultracentrifuge Tubes (344322)

Quick-Seal   Polypropylene Tubes 344622)

詢價

詢價







4mL厚壁開口管

Beckman

355644

25/pkg

4mL Open-Top   Thickwall Polypropylene Tube

Nominal Size: 13 x   64mm - 25Pk

Applicable Max.   speed 50000rpm

Required Adapter   303313

詢價

詢價

4mL透明厚壁開口管

Beckman

355645

25/pkg

4mL Open-Top   Thickwall Polycarbonate Tube

Nominal Size: 13 x   64mm - 25Pk

Applicable Max.   speed 50000rpm

Required Adapter   303313

詢價

詢價

Φ13mm管套適配器

Beckman

303313

1/pkg

13mm Diameter   Delrin Tube Adapter

Applicable Rotors: Type 90 Ti, Type 70.1 Ti, MLA-55

詢價

詢價







2mL超凈薄壁開口管

Beckman

344091

50/pkg

2mL Open-Top   Thinwall Ultra-Clear Tube

Nominal Size: 49 x   8mm - 50Pk

Applicable Rotors: Type 90 Ti Type, 70.1 Ti

Applicable Max.   speed 40000rpm

Required Aluminum   Cap Assembly 303624

Required Adapter   303376.

詢價

詢價

Φ8mm管套適配器

Beckman

303376

1/pkg

8mm Diameter Delrin   Tube Adapter

Applicable Rotors: Type 90 Ti, Type 70.1 Ti,   MLA-55.

適用于344091

詢價

詢價

Φ8mm管帽組件

Beckman

303624

1/pkg

8mm Diameter   Aluminum Tube Cap Assembly

Applicable   Ultracentrifuge Rotors:

Type 90 Ti, Type   70.1 Ti, MLA-55.

適用于344091

詢價

詢價
