Himac離心機轉頭適配離心管

250mL角轉頭R16A3/R13A/R12A3/R14A適配離心瓶

R16A3、R13A、R12A3和R14A四個角轉頭，最大單管容量均為250mL，常用于收獲細菌、細胞或酵母以及清除細胞碎片。R16A3配屬于CR30NX，其余三個角轉頭則適用于CR22N立式高速冷凍離心機。

商品名稱：R16A3 R13A R12A3 R14A Fixed angle rotor  250mL離心瓶

制 造 商：eppendorf公司

品    牌：Himac

轉頭適配離心瓶見：［訂購信息］

詳細描述

R16A3、R12A3、R13A和R14A這四個角轉頭，最大單管容量均為250mL，常用于收獲細菌、細胞或酵母以及清除組織勻漿或細胞裂解液中的組織細胞碎片。

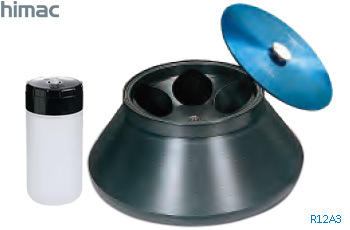

R16A3最大容量6×250mL，最高離心速度16000 rpm，適用于CR30NX立式高速冷凍離心機。R13A、R12A3和R14A適用于適用于CR22N。R12A3角轉頭最大容量6×250mL，最高離心速度12000 rpm。

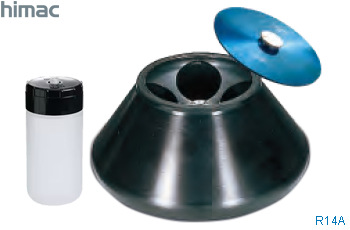

R14A為4×250mL容量，轉速最高14000rpm。即使在離心過程中，樣品從轉子內的管子中溢出，溢出的樣品也會停留在R13A型流體環空中。R22A4型。

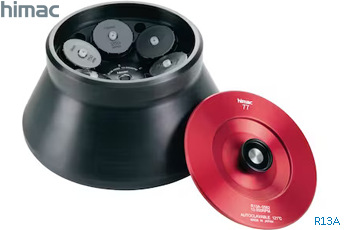

R13A的最多可有6個250mL離心孔和6個11mL離心孔，無需適配器就可同時離心6×250mL離心瓶(尺寸φ62×124mm)和φ16×82mm的10-12mL圓底管。R13A轉頭上部具有環形槽（fluid annulus），在離心過程中，樣品從轉子內的管子中溢出時，液體也會停留流體環中而不會泄露到轉頭外部。

添加50TA300適配器后，R16A3、R12A3、R13A和R14A可用于Himac 50TC組織培養管或市面同類型尖底離心管高速離心。




1、主要技術規格

適用主機

CR30NX

CR22N

轉頭型號

R16A3

R13A

R12A3

R14A

額定工作容量

250 mL×6

(250 mL+11 mL)×6

250 mL×6

250mL × 4

適用離心瓶尺寸

φ6.2×13.2cm

最高轉速/RCF

16000rpm/ 40100×g

13000 rpm/26400×g

12000rpm/ 23800×g

14000 rpm/30240×g

轉頭離心孔傾斜角度

25°

25°

30°

35°

最高轉速時k factor

756

1112

1292

1189

轉頭材質

鋁合金（Aluminum alloy）

轉頭自身空重

12 kg

11 kg

16.0kg

16.8 kg



2、標準工作組件

適用主機

CR30NX

CR22N

轉頭型號

R16A3

R13A

R12A3

R14A

250PP Bottle

5721411012  6pcs

5721411012  4pcs

Bottle Setter轉頭蓋螺栓

5721411172  1x

Rotor Set Handle（轉頭提取手柄）

NA

5721411239  1x

Rotor O-Ring轉頭蓋密封圈

5721411134  1x

5720410168  1x

5720410223  1x

Rotor Set Handle   O-Ring

5721411120  1x

5721411119  1x







訂貨信息

品名

品牌

貨號

規格

描述

報價

R16A3角轉頭

Himac

5721302111

1 set

R16A3 Fixed Angle   Rotor Package - CR30NX

Max.   Speed 16000rpm/Max. RCF 40100×g

Maximum   tube capacity 6×250mL bottle

Incl.   250PP Bottle x 6

詢價

250mL×6角轉頭R12A3

Himac

5721221011

1 set

R12A3 Fixed Angle Rotor Package – CR22N

Max. Speed 12000rpm/Max. RCF 23800xg;

Tubes Nominal Capacity: 6×250 mL;

Tube dimensions: ?62×124 mm

incl. 6 x 250 mL PP bottles

詢價

250mL×6角轉頭R13A

Himac

5721221009

1 set

R13A Fixed Angle Rotor Package – CR22N

Max. Speed 13000rpm/Max. RCF   26400xg;

250PP bottle×6;

Tubes Nominal Capacity: 6×250 mL;

Tube dimensions: ?62×124 mm

詢價

250mL×4角轉頭R14A

Himac

5721221008

1 set

R14A Fixed Angle Rotor Package – CR22N

Max. Speed 14000rpm/Max. RCF   30240xg;

250PP bottle×4;

Tubes Nominal Capacity: 4×250 mL;

Tube dimensions: ?62×124 mm

詢價

300SS鋼離心管

Himac

5721411063

2 pcs/set

300SST Tube

Nominal Tube Size: φ6.2×12.8 cm;

Tube Material: SST;

Net Sample Volume: 160mL;

Max. speed 16000 rpm/Max. RCF 40100×g

詢價

詢價

250PP離心瓶

Himac

5721411012

10 pcs/set

250PP Bottle

Nominal Tube Size: φ6.2×12.4 cm;

Tube Material: PP;

Net Sample Volume: 250mL;

Max. speed 16000 rpm/Max. RCF 40100×g

詢價

詢價

250PC離心瓶

Himac

5721411013

10 pcs/set

250PC Bottle ASSY

Nominal Tube Size: φ6.2×12.4 cm;

Tube Material: PC;

Net Sample Volume: 250mL;

Max. speed 16000 rpm/Max. RCF 40100×g

詢價

詢價

94SS鋼離心管

Himac

5720411165

2 pcs/set

94SS Tube ASSY

Nominal Tube Size: φ3.8×10.1 cm;

Tube Material: SST;

Net Sample Volume: 58mL;

Max. speed 10000 rpm/Max. RCF 13080×g

80A300 Adapter (5721411104)   required

詢價

詢價

80PA離心瓶

Himac

5721411010

10 pcs/set

80PA Bottle

Nominal Tube Size: φ3.8×10.4 cm;

Tube Material: PP;

Net Sample Volume: 60mL;

Max. speed 10000 rpm/Max. RCF 13080×g

80A500 Adapter required

詢價

詢價

70PC離心瓶

Himac

5721411011

10 pcs/set

70PC Bottle

Nominal Tube Size: φ3.8×10.4 cm;

Tube Material: PC;

Net Sample Volume: 55mL;

Max. speed 10000 rpm/Max. RCF 13080×g

80A300 Adapter (5721411104)   required

詢價

詢價

80A300適配器

Himac

5721411104

4 pcs/set

80A300 Adapter ASSY

applicable tube size: 6.1×11.7 cm;

Adapter Material: NBR;

Number of tubes per Adapter: 1

詢價

詢價

50SS鋼離心管

Himac

5721411058

2 pcs/set

50SST Tube

Nominal Tube Size: φ2.9×10.2 cm;

Tube Material: SST;

Net Sample Volume: 36mL;

Max. speed 10000 rpm/Max. RCF 13250×g

50A300 Adapter(B) required

詢價

詢價

50PP離心瓶

Himac

5721411008

10 pcs/set

50PP Bottle

Nominal Tube Size: φ2.9×10.3 cm;

Tube Material: PP;

Net Sample Volume: 32mL;

Max. speed 10000 rpm/Max. RCF 13250×g

50A300 Adapter(B) required

詢價

詢價

50PC薄壁開口管

Himac

5721411057

10 pcs/set

50PC Tube   without cap

Nominal Tube   Size: φ2.9×10.3 cm;

Tube Material:   PC;

Net Sample   Volume: 3mL;

Maximum Speed 22000rpm/Max. RCF 58700xg

50A300 Adapter(B) required

詢價

詢價

50A300適配器(B)

Himac

5721411100

2 pcs/set

50A300 Adapter (B)

applicable tube size: 6.1×11.5 cm;

Adapter Material: PP;

Number of tubes per Adapter: 1

詢價

詢價

50PA薄壁開口管

Himac

5721411056

10 pcs/set

50PA Tube for rotors R14A, R20A2, R22A3

Nominal Tube Size: φ2.9×10.4 cm;

Tube Material: PP;

Net Sample Volume: 34mL;

Max. speed 10000 rpm/Max. RCF 13250×g

M-PP Lid required

詢價

詢價

50PC薄壁開口管

Himac

5721411057

10 pcs/set

50PC Tube

Nominal Tube   Size: φ2.9×10.3 cm;

Tube Material:   PC;

Net Sample Volume:   35mL;

Maximum Speed 22000rpm/Max. RCF 58700xg

M-PP Lid required

詢價

詢價

50A300適配器(B)

Himac

5721411100

2 pcs/set

50A300 Adapter (B) ASSY

applicable tube size: 6.1×11.5 cm;

Adapter Material: PP;

Number of tubes per Adapter: 1

詢價

詢價

M-PP管蓋組件

Himac

5721411074

20 pcs/set

M-PP Lid for   50PA/PC Tube

詢價

詢價

50 GlaSS鋼離心管

Himac

5721411059

10 pcs/set

50 GLASS Tube ASSY

Nominal Tube Size: φ3.5×10.0 cm;

Tube Material: Glass;

Net Sample Volume: 35mL;

Maximum Speed  4000rpm/Max. RCF 2400xg

50GA300 Adapter required

詢價

詢價

50GA300適配器

Himac

5721411102

4 pcs/set

50GA300 Adapter ASSY

applicable tube size: 6.1×11.7 cm;

Adapter Material: NBR;

Number of tubes per Adapter: 1

詢價

詢價

50mL錐形離心管

Falcon

352070

25 pcs/pk,

500pcs/cs

50mL Conical-Bottom Tube with flat-top screw cap

Material:   high-clarity polypropylene

Dimensions (Outer diameter × Height): 30×115 mm

Maximum   RCF: 16000 xg

packaging: No rack, Sterile

詢價

詢價

50mL錐形高速離心管

Corning

430291

25 pcs/pk,

500pcs/cs

50mL Conical-Bottom Tubes with Plug Seal Cap

Material: polypropylene (PP)

Dimensions (Outer diameter × Height): 29.1×114.4 mm

Maximum RCF: 15500×g

packaging:    25pcs/pk, Sterile

詢價

詢價

50mL CentriStar錐形離心管

Corning

430829

25 pcs/pk

10 pks/cs

50mL Conical-Bottom Tubes with CentriStar Cap

Material: polypropylene (PP)

Dimensions (Outer diameter × Height): 29.1×114.4 mm

Maximum RCF:    17000×g

packaging: 25pcs/pk, Sterile

詢價

詢價

50mL錐形管

eppendorf

0030122186

12racks×25pcs

50mL Conical-bottom Tubes with screw cap

Diameter: 17mm/30mm

Nominal Sample   Volume: 15mL/50mL

Centrifugation Max.   RCF: 19500×g

Packing: 300 tubes   (12 racks × 25 tubes)

詢價

詢價

50TA300適配器

Himac

5721244012

2 pcs/set

50TA300 Adapter

applicable tube size: 6.1×10.5 cm;

Adapter Material: POM;

Number of tubes per Adapter: 1

詢價

詢價

10ml GlaSS鋼離心管

Himac

5721411042

50 pcs/set

10ml Glass Tube

Nominal Tube Size: φ1.2×10.5 cm;

Tube Material: Glass;

Net Sample Volume: 7.2mL;

Maximum Speed 4000rpm/Max. RCF 2700xg

10G7A300 Adapter required

詢價

詢價

10G7A300適配器

Himac

5721411085

4 pcs/set

10G7A300 Adapter

applicable tube size: 6.1×11.7 cm;

Adapter Material: POM;

Number of tubes per Adapter: 7

詢價

詢價

himac 50mL尖底離心管

Himac

5721411170

100 pcs/set

himac 50TC Tube for R16A3 ,R13A rotor

Nominal Tube Size: φ3.0×10.5 cm;

Tube Material: PP;

Net Sample Volume: 43mL;

Maximum Speed 11000rpm/Max. RCF 16200xg

詢價

詢價

50TA300適配器

Himac

5721244012

2 pcs/set

50TA300 Adapter for himac 50TC Tube

Use with R16A3 ,R13A rotor

applicable tube size: 6.1×10.5 cm;

Adapter Material: POM;

Number of tubes per Adapter: 1

詢價

詢價

11PA厚壁開口管

Himac

5721411043

10 pcs/set

11PA Thick-walled Tube for R13A rotor

Only Use in R13A Fixed angle rotor

Nominal Tube Size: φ1.6×8.2 cm;

Tube Material: PP;

Net Sample Volume: 8mL;

Maximum Speed 13000rpm/Max. RCF 23400xg

C2-PP Lid required

詢價

詢價

C2-PP管蓋組件

Himac

5721411071

20 pcs/set

C2-PP LID for 11PA Thick-walled Tube

詢價
