Himac離心機轉頭適配離心管
CR22N離心機500mL管角轉頭R10A3/R12A6
Himac CR22N 立式低溫高速離心機角轉頭R10A3可容納6個500mL 的500PA離心瓶,最高轉速10000,主要用于大量發酵培養的生物工程菌、細胞高效離心收集。
商品名稱:R10A3 R12A6 角轉子 Fixed angle rotor 500PA Bottle
制 造 商:eppendorf公司
品 牌:Himac
轉頭適配離心瓶見:[訂購信息]
詳細描述

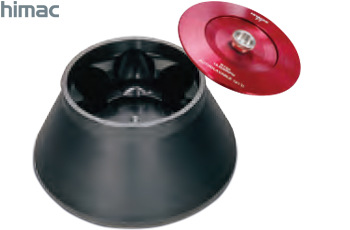

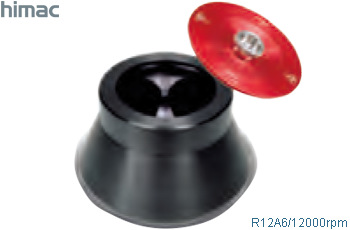

R10A3、R12A6角轉頭,可容納500mL PA離心瓶,常用于收獲細菌、細胞或酵母離心,適用于CR22N立式高速冷凍離心機(R10A3同時也配屬于于CR30NX)。
1、主要技術規格
轉頭型號 | R10A3 | R12A6 |
額定工作容量(nominal capacity) | 500 mL×6 | 500mL×4 |
最高轉速 | 10000rpm/Max. RCF 18800×g | 12000 rpm/Max. RCF 22500×g |
離心孔傾斜角度 | 26° | 23° |
最高轉速時k factor | 1726 | 1245 |
轉頭材質 | 鋁合金(Aluminum alloy) | |
轉頭自身空重 | 14.6 kg | 14.8 kg |
2、轉頭標準工作組件

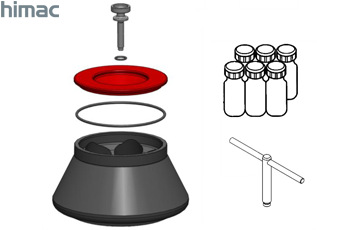

500mL角轉頭由轉頭主體Rotor body、轉頭蓋Rotor cover、蓋子鎖定手柄Cover-locking knob、手柄含氟橡膠小墊圈(Fluorine-contained rubber)、轉頭蓋O-型密封墊圈(Nitrile rubber)組成。
標準附件 | R10A3 | R12A6 |
500PA Bottle | 5721411014 6pcs | 5721411014 4pcs |
Rotor Set Handle | 5721411239 1x | |
O-Ring for Handle | 5720410231 O-Ring 1AG220 1x | 5720410166 O-Ring 1AV175 1x |
O-Ring for Rotor Cover | 5721411120 O-Ring 4DV24 1x | 5721411119 O-Ring 1AV24 1x |
R10A3、R12A6適配的500mL離心瓶為Himac 500PA Bottle。
訂貨信息
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
500mL×6角轉頭R10A3 | Himac | 5721221013 | 1 set | R10A3 Fixed Angle Rotor Package Max. Speed 10000rpm/Max. RCF 18800xg; Tubes Nominal Capacity: 6×500 mL; Tube dimensions: ?73×163 mm | 詢價 |
500mL×4角轉頭R12A6 | Himac | 5721221010 | 1 set | R12A6 Fixed Angle Rotor Package Max. Speed 12000rpm/Max. RCF 22500xg; Tubes Nominal Capacity: 4×500 mL; Tube dimensions: ?73×163 mm | 詢價 |
500PA離心瓶 | Himac | 5721411014 | 4 pcs/set | 500PA Bottle including caps Nominal Tube Size: φ7.3×16.3 cm; Tube Material: PP; Net Sample Volume: 410mL; Maximum Speed 10000rpm/Max. RCF 18800xg | 詢價 詢價 |
500PA密封蓋離心瓶 | Himac | 5721411015 | 4 pcs/set | 500PA Seal Bottle including caps Nominal Tube Size: φ7.3×16.3 cm; Tube Material: PP; Net Sample Volume: 500mL; Maximum Speed 8000rpm/Max. RCF 12000xg | 詢價 詢價 |
500SS鋼離心瓶 | Himac | 5721411018 | 2 pcs/set | 500SST Bottle Nominal Tube Size: φ7.3×16.5 cm; Tube Material: SST; Net Sample Volume: 400mL; Maximum Speed 10000rpm/Max. RCF 18800xg | 詢價 詢價 |
500SS鋼離心管 | Himac | 5721411065 | 2 pcs/set | 500SST Tube Nominal Tube Size: φ7.3×15.0 cm; Tube Material: SST; Net Sample Volume: 290mL; Maximum Speed 8000rpm/Max. RCF 12000xg | 詢價 詢價 |
300SS鋼離心管 | Himac | 5721411063 | 2 pcs/set | 300SST Tube Nominal Tube Size: φ6.2×12.8 cm; Tube Material: SST; Net Sample Volume: 160mL; Maximum Speed 10000rpm/Max. RCF 17800xg | 詢價 詢價 |
300A500適配器 | Himac | 5721411108 | 2 pcs/set | 300A500 Adapter (B) applicable tube size: 7.3×12.5 cm; Adapter Material: PP; Number of tubes per Adapter: 1 | 詢價 詢價 |
250PP離心瓶 | Himac | 5721411012 | 10 pcs/set | 250PP Bottle Nominal Tube Size: φ6.2×12.4 cm; Tube Material: PP; Net Sample Volume: 250mL; Maximum Speed 10000rpm/Max. RCF 17800xg 300A500 Adapter(B) required | 詢價 詢價 |
250PC離心瓶 | Himac | 5721411013 | 10 pcs/set | 250PC Bottle ASSY Nominal Tube Size: φ6.2×12.4 cm; Tube Material: PC; Net Sample Volume: 250mL; Maximum Speed 10000rpm/Max. RCF 17800xg 300A500 Adapter(B) required | 詢價 詢價 |
300A500適配器 | Himac | 5721411108 | 2 pcs/set | 300A500 Adapter (B) applicable tube size: 7.3×12.5 cm; Adapter Material: PP; Number of tubes per Adapter: 1 | 詢價 詢價 |
94SS鋼離心管 | Himac | 5720411165 | 2 pcs/set | 94SS Tube ASSY Nominal Tube Size: φ3.8×10.1 cm; Tube Material: SST; Net Sample Volume: 58mL; Maximum Speed 8000rpm/Max. RCF 9600xg 80A500 Adapter required | 詢價 詢價 |
80PA離心瓶 | Himac | 5721411010 | 10 pcs/set | 80PA Bottle Nominal Tube Size: φ3.8×10.4 cm; Tube Material: PP; Net Sample Volume: 60mL; Maximum Speed 8000rpm/Max. RCF 9600xg 80A500 Adapter required | 詢價 詢價 |
70PC離心瓶 | Himac | 5721411011 | 10 pcs/set | 70PC Bottle Nominal Tube Size: φ3.8×10.4 cm; Tube Material: PC; Net Sample Volume: 55mL; Maximum Speed 8000rpm/Max. RCF 9600xg 80A500 Adapter required | 詢價 詢價 |
80A500適配器 | Himac | 5721411105 | 2 pcs/set | 80A500 Adapter applicable tube size: 7.3×12.5 cm; Adapter Material: NBR; Number of tubes per Adapter: 1 | 詢價 詢價 |
50PP離心瓶 | Himac | 5721411008 | 10 pcs/set | 50PP Bottle Nominal Tube Size: φ2.9×10.3 cm; Tube Material: PP; Net Sample Volume: 32mL; Maximum Speed 8000rpm/Max. RCF 10700xg 50×3A500 Adapter(B) required | 詢價 詢價 |
50PC離心瓶 | Himac | 5721411009 | 10 pcs/set | 50PC Bottle ASSY Nominal Tube Size: φ2.9×10.3 cm; Tube Material: PC; Net Sample Volume: 36mL; Maximum Speed 22000rpm/Max. RCF 58700xg 50×3A500 Adapter(B) required | 詢價 詢價 |
50SS鋼離心管 | Himac | 5721411058 | 2 pcs/set | 50SST Tube Nominal Tube Size: φ2.9×10.2 cm; Tube Material: SST; Net Sample Volume: 36mL; Maximum Speed 8000rpm/Max. RCF 10700xg 50×3A500 Adapter(B) required | 詢價 詢價 |
50×3A500適配器 | Himac | 5721411099 | 2 pcs/set | 50×3A500 Adapter(B) applicable tube size: 7.3×12.5 cm; Adapter Material: PP; Number of tubes per Adapter: 3 | 詢價 詢價 |
50PA開口薄壁離心管 | Himac | 5721411056 | 10 pcs/set | 50PA Tube for rotors R14A, R20A2, R22A3 Nominal Tube Size: φ2.9×10.4 cm; Tube Material: PP; Net Sample Volume: 34mL; Maximum Speed 8000rpm/Max. RCF 10700xg | 詢價 詢價 |
50PC開口薄壁離心管 | Himac | 5721411057 | 10 pcs/set | 50PC Tube Nominal Tube Size: φ2.9×10.3 cm; Tube Material: PC; Net Sample Volume: 36mL; Maximum Speed 22000rpm/Max. RCF 58700xg | 詢價 詢價 |
50×3A500適配器 | Himac | 5721411099 | 2 pcs/set | applicable tube size: 7.3×12.5 cm; Adapter Material: PP; Number of tubes per Adapter: 3 | 詢價 詢價 |
開口管蓋組件 | Himac | 5721411074 | 20 pcs/set | M-PP Lid for 50PA/PC Tube | 詢價 詢價 |
50mL玻璃管 | Himac | 5721411059 | 10 pcs/set | 50 GLASS Tube ASSY Nominal Tube Size: φ3.5×10.0 cm; Tube Material: Glass; Net Sample Volume: 35mL; Maximum Speed 4000rpm/Max. RCF 2400xg 50GA500 Adapter required | 詢價 詢價 |
50GA500適配器 | Himac | 5721411103 | 2 pcs/set | 50GA500 Adapter ASSY applicable tube size: 7.3×12.5 cm; Adapter Material: NBR; Number of tubes per Adapter: 1 | 詢價 詢價 |
10mL玻璃管 | Himac | 5721411042 | 50 pcs/set | 10ml Glass Tube Nominal Tube Size: φ1.2×10.5 cm; Tube Material: Glass; Net Sample Volume: 7.2mL; Maximum Speed 4000rpm/Max. RCF 2700xg 10G19A500 Adapter required | 詢價 詢價 |
10G19A500適配器 | Himac | 5721411083 | 2pcs/set | 10G19A500 Adapter applicable tube size: 7.3×12.5 cm; Adapter Material: POM; Number of tubes per Adapter: 19 | 詢價 詢價 |
3mL圓底玻璃管 | NA | NA | NA | 3ml PYREX Tube Nominal Tube Size: φ1.0×7.5 cm; Tube Material: Glass; Net Sample Volume: 3mL; Maximum Speed 7000rpm/Max. RCF 8900xg 3G18A500 Adapter required | NA |
3G18A500適配器 | Himac | 5721411098 | 2 pcs/set | 3G18A500 Adapter ASSY applicable tube size: 7.3×12.7 cm; Adapter Material: PP; Number of tubes per Adapter: 18 | 詢價 詢價 |
-
